Name: 380V Double Pulse Mig Welding Machine Mig Welder Aluminum Welding Machine Manufacturer
Brand: Beijing Aland Welding Co., Ltd.
Availability: InStock

Home Products Pulse MIG Welding Machine

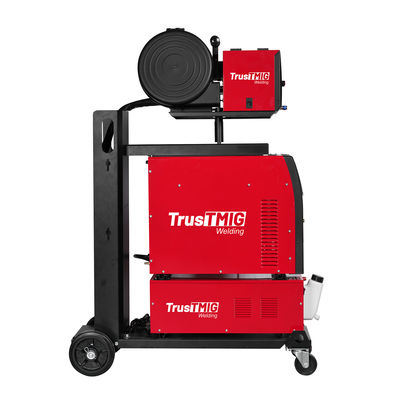

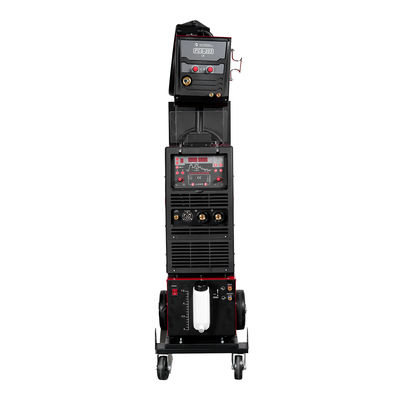

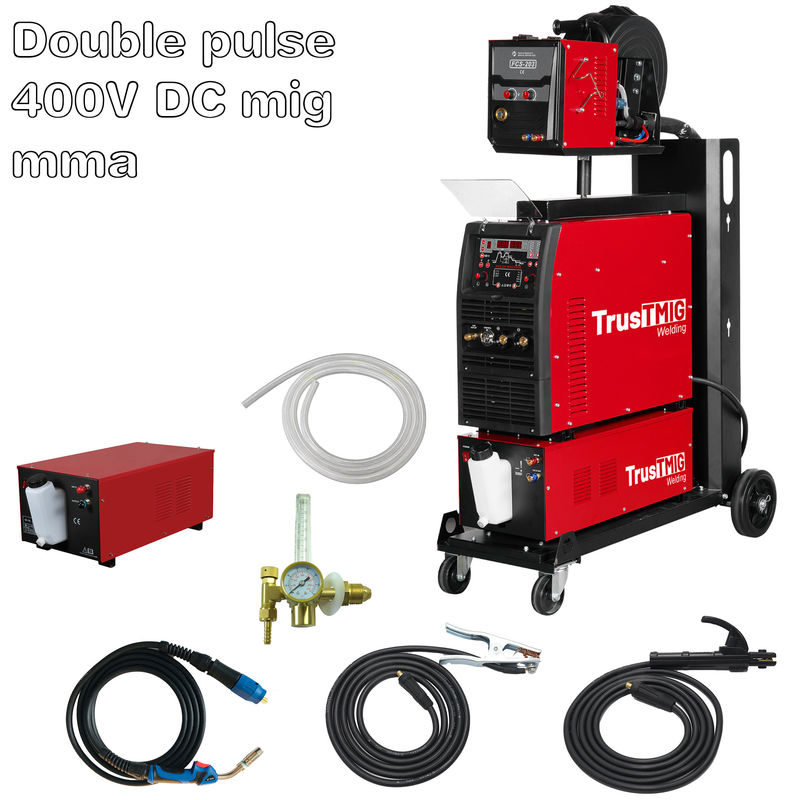

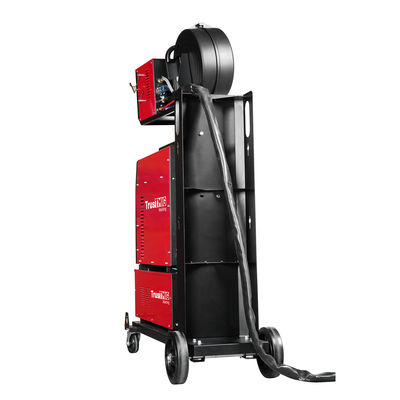

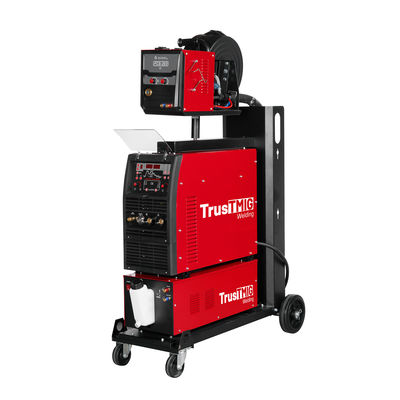

380V Double Pulse Mig Welding Machine Mig Welder Aluminum Welding Machine Manufacturer

Product Details:

Place of Origin:	Beijing, China
Brand Name:	OEM

Contact Now

Detailed Product Description

Material / Metal Processed:	Aluminium Alloy Stainless Steel Carbon Steel	Rated Input Voltage:	400 V
Wire Melting Type:	Globular Transfer	Max. Load Power Capacity:	27KAV
Rated Output Voltage:	29 V	Welding Current/voltage Range:	20A-500A
Rated Duty Cycle @40°c (mig):	60	Wire Feeding Speed:	2.5
Condition:	New	Dimensions:	1110x606x1460mm
Usage:	Aluminum/steel Welding	Weight (kg):	52
Warranty:	1 Year	Feature:	INVERTER
Engine Power:	Electric(ac), Electric(dc)	Mig Solid Wire Diameter Mm:	0.8mm, 1.0mm, 1.6mm, 1.2MM
Product Name:	PULSE MIG500D 500A Double Pulse Mig Welder Aluminum	Function:	Pulse MIG, Double Pulse MIG, MMA
Color:	As Required	Voltage:	3xAC380~415V 50Hz/60Hz
Gas Type:	80%Ar+20%CO2(Fe,Cu) ; 100%Ar(AlSi,AlMg) ;98%Ar+2%CO2 Or O2(CrNi)	Wire Alloy Material:	Fe,AlSi,AlMg,CrNi,Cu
Wire Diameter:	0.8,1.0,1.2,1.6(solid/flux)	Protection Class Of Shell:	Fan Cooling
Protection Class Of Enclosure:	IP21S

Product Description

What can you expect from our PulseMIG500D?

Functions: Pulse MIG Double-Pulse MIG CO2 MMA (Stick Welding)

Suitable Material: Aluminum Alloy, Stainless Steel, Carbon Steel

Features:

IGBT Inverter advanced technology 1. Multi-functions: synergic MIG, Double Pulse MIG, Single pulse MIG, MMA 2. Two knobs adjusting 3. Double-drive 4-wheels wire feeder 4. 100% duty cycle 5. Independent ventilation design, comprehensive protection, anti-dust, anti-moisture, anti-corrosion 6. Voltage input: 380V, 3PH 7. Over-heating current, over-heating voltage and under-voltage protection 8. Welding arc stable, little splash, deep welding pool, and beautiful welding seam 9. New trolley design, free combination

Main Parameters:

Product name	PULSE MIG500D 500A Double Pulse Mig welder aluminum
Function	Pulse MIG, Double pulse MIG, MMA
Color	As required
Voltage	3xAC380~415V 50Hz/60Hz
Gas Type	80%Ar+20%CO2(Fe,Cu) ; 100%Ar(AlSi,AlMg) ;98%Ar+2%CO2 or O2(CrNi)
Wire Alloy Material	Fe,AlSi,AlMg,CrNi,Cu
Wire Diameter	0.8,1.0,1.2,1.6(solid/flux)
Protection class of shell	fan cooling
Protection Class of enclosure	IP21S

Related Products:

DigiTIG250ACDCPULS (PULSE AC DC TIG)

MicroTIG185DA (AC DC TIG MMA)

PulseMIG250DC-1 (Double pulse MIG)

Production Workshop

FAQ.

Q1. Why Choose us?

- We have nearly 10 years experience in welding industry and export to all over the world. - We have experienced R&D team. We can adjust the parameter and panels design as per your request.

- Most of key parts are adopted top brand to ensure the quality. Such as the IGBT of Infineon (Simens). - Each machine will be inspected before shipping. - One year warranty, life-long technical support and design service.
Q2. Could you get a customized sample?
Yes, we can adjust some configuration and parameters as your request.

It also includes OEM service.

Q3. How is your quality control?
We use the world-class quality inspection to make every machine strong, powerful and reliable. We inspect with the world class quality testing to make every single machine strong, powerful and reliable.
Inpection is full range, covered from welding power source to wire feeders, welding torches and up to welding consumables and work safety. Whether you want to weld with 2T/4T, GAS/NO GAS, our components, which have been perfectly tuned to your requirements, acting as excellent quality and the best possible welding results.
Q4. What voltage could you provide?

110V/220v, 220/380V, 230V etc.

We can make it as per your country voltage.

Q5. Can you send me the video to show how the machine works?
At present, some machines have video. We will try to make video of featured machine in future.
Q6. Do you have engineer who can guide me to install system?
Yes, we have a professional team. They can teach you how to work with it.
Q7. How long is the lead time for welding machine?
If no stockes, usually it takes 30-35 days after confirmation of order.
