Name: Multifunctional DC MMA Pules TIG And Double Pulse Mig 250A Aluminum Mig Welding Machine Mig Welder
Brand: Beijing Aland Welding Co., Ltd.
Availability: InStock

Home Products Pulse MIG Welding Machine

Multifunctional DC MMA Pules TIG And Double Pulse Mig 250A Aluminum Mig Welding Machine Mig Welder

Product Details:

Place of Origin:	Beijing, China
Brand Name:	TrusTMIG

Contact Now

Detailed Product Description

Condition:	New	Type:	MIG Welders
Arc Current:	40A	Pulse Frequency:	50/60 HZ
Pilot Arc Current:	250A	Rated Duty Cycle:	35%
Motor Type:	DC MOTOR	Dimensions:	560x240x460mm
Usage:	Welding	Voltage:	230V
Weight (kg):	22	Warranty:	1 Year
Plug Type:	US PLUG, European Plug	Power:	9.5KVA
Product Name:	DC MMA Pulse TIG Pulse MIG Welding Machine	Color:	AS Request
Function:	TIG Output Current Range	Stainless Steel Welding:	Yes
2T/4T:	Yes	Lift TIG:	Yes
Synergic MIG:	Yes	Duty Cycle:	35%
MIG Output Current Range:	30-250A	TIG Output Current Range:	10-250A

Pulse TIG MIG MMA 3 IN 1 Welder

PULSE MIG250P

Product Description

What can you expect from our PULSE MIG250P?

Functions: PULSE TIG, PULSE MIG, SYNERGIC MIG, LIFT TIG, DC MMA

Suitable Material: Mild steel and Stainless Steel

Features:

1. Pulse MIG/Pulse TIG/Synergic MIG/MMA 3IN1 multi-process
2. Lift-TIG
3. IGBT technology
4. Full Digital Control Panel, Friendly Operation Panel
5. MIG has synergic function that automatically adjusts the wire speed when increases or decreases the voltage.
6. Hot Arc Start, arc force, anti-stick function.
7. 2T/4T function
8. Microprocessor inside, 10 channels memory to facilitate saving time and save your settings favorites.
9. Quickly gas connector, Easy Operation.
10. Over thermal and Current Protection.
11. 10kg/200mm wire spool.
12. Spool Gun socket optional.

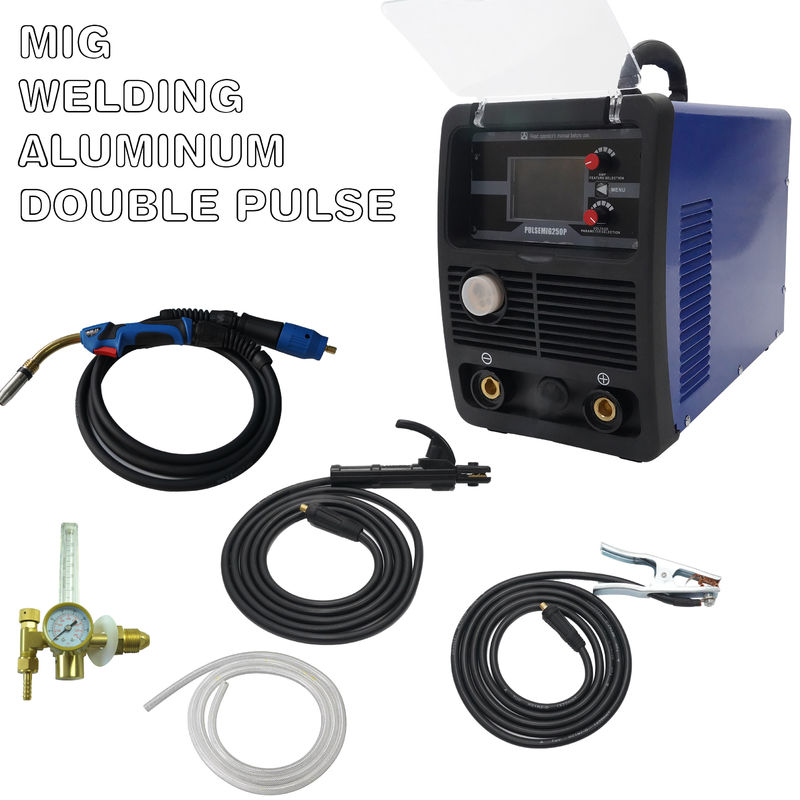

Included Accessories:

TIG Torch 3m

MIG Torch 3m

Gas hose 2m

300A Earth Clamp 3m

300A Electrode Holder 3m

Foot peda

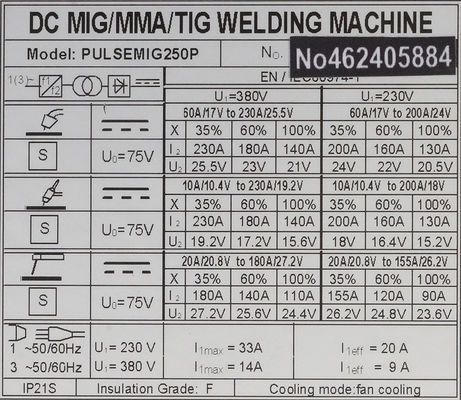

Main Parameters:

MODEL		Model	PULSE MIG250P
INPUT	Voltage	1xAC230V, 50/60Hz
		Rated Input Current	40A
		Rated Input power	9KVA
MMA	No-load Voltage	60V
		Current Adjusting Range	10~200A
		Rated Output Current	200A
		Rated Duty Cycle	35%
TIG	No-load Voltage	60V
		Current Adjusting Range	10~250A
		Rated Output Current	250A
		Rated Duty Cycle	35%
		Base Current Adjusting Range	10-250A
		Pulse width	10%~90%
		Pulse freq.	0.1~500Hz
MIG	No-load Voltage	60V
		Pulse / base Voltage Adjusting Range	14-30V
		Rated Output Current	250A
		Current Range	30~250A
		Rated Duty Cycle	35%
		Wire Speed Adjusting Range	1.5~15m/min
		Base/Pulse voltage	10~100%
		Voltage Adjusting Range	15.5~22V
		Pulse width	10%~90%
		Pulse freq.	10~250Hz
		Suitable wire	0.024'',0.030'',0.035'' (0.6/0.8/1.0mm)
		Spot / Stitch time	0.1~15s
Pre gas Flow Time			0~5s
Post gas Flow Time			0~10s
Efficiency			≥80%
Mass			25kg
Protection Class of enclosure			IP21S
Machine Dimension			430200290mm

Related Products:

DigiTIG250ACDCPULS (PULSE AC DC TIG)

MicroTIG185DA (AC DC TIG MMA)

PulseMIG250DC-1 (Double pulse MIG)

Company Introduction

FAQ.

Q1. Why Choose us?

- We have nearly 10 years experience in welding industry and export to all over the world. - We have experienced R&D team. We can adjust the parameter and panels design as per your request.

- Most of key parts are adopted top brand to ensure the quality. Such as the IGBT of Infineon (Simens). - Each machine will be inspected before shipping. - One year warranty, life-long technical support and design service.
Q2. Could you get a customized sample?
Yes, we can adjust some configuration and parameters as your request.

It also includes OEM service.

Q3. How is your quality control?
We use the world-class quality inspection to make every machine strong, powerful and reliable. We inspect with the world class quality testing to make every single machine strong, powerful and reliable.
Inpection is full range, covered from welding power source to wire feeders, welding torches and up to welding consumables and work safety. Whether you want to weld with 2T/4T, GAS/NO GAS, our components, which have been perfectly tuned to your requirements, acting as excellent quality and the best possible welding results.
Q4. What voltage could you provide?

110V/220v, 220/380V, 230V etc.

We can make it as per your country voltage.

Q5. Can you send me the video to show how the machine works?
At present, some machines have video. We will try to make video of featured machine in future.
Q6. Do you have engineer who can guide me to install system?
Yes, we have a professional team. They can teach you how to work with it.
Q7. How long is the lead time for welding machine?
If no stockes, usually it takes 30-35 days after confirmation of order.
