Name: 230V MIG Welding Machine Multifunctional Mig Welders 250A 3IN1 MIG TIG MMA Welder
Brand: Beijing Aland Welding Co., Ltd.
Availability: InStock

Home Products Pulse MIG Welding Machine

230V MIG Welding Machine Multifunctional Mig Welders 250A 3IN1 MIG TIG MMA Welder

Product Details:

Place of Origin:	Beijing, China
Brand Name:	ALANDWELDING

Contact Now

Detailed Product Description

Material / Metal Processed:	Carbon Steel	Rated Input Voltage:	230 V
Wire Melting Type:	Spray Transfer	Max. Load Power Capacity:	6.1KVA
Rated Output Voltage:	230 V	Welding Current/voltage Range:	40-250A
Rated Duty Cycle @40°c (mig):	30%	Wire Feeding Speed:	14
Condition:	New	Dimensions:	520mmx300mmx370mm
Usage:	Welding All Kinds Of Ferrous Metals	Weight (kg):	14.5
Warranty:	1 Year	Feature:	Gasless
Engine Power:	Electric(dc)	Mig Solid Wire Diameter Mm:	1.2MM
Power Supply Voltage:	AC1 10/230V±10%(50/60HZ)	Max.Power Consumption:	6.1KVA
Rated Input Current:	110V : 43.1A 230V : 38.5A	No-load Voltage:	16.5-25.5V
Wire Size:	0.8mm , 0.9mm , 1.0mm	Protective Class:	IP21S
Wire Feeder:	Inside	Weight:	14.5Kg
Wire Feeding Speed:	2.5-14m/min	Usable Thickness:	0.8above(mm)

1. Introduction to welding machine

The MIG-180S2 series is a portable multi-functional welding machine with MIG/TIG/MMA that can meet a variety of needs. The welding machine is an air-cooled welding machine that supports gas and gasless welding. The welding machine has a handle for easier movement. ALAND Mechanical and Electrical Co., Ltd. can provide buyers with welding machines for a variety of welding needs, as well as accessories and consumables for various welding machines. Welcome to inquire at any time.

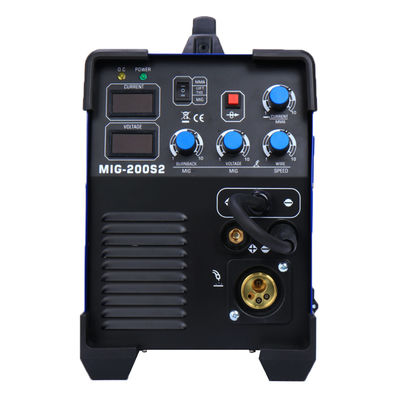

2. Introduction to machine panel

3. Attribute table

	MIG-180S2	MIG-200S2	MIG-250S2
Power supply voltage	AC110/230V±10%(50/60HZ)	AC110/230V±10%(50/60HZ)	AC110/230V±10%(50/60HZ)
Max.Power consumption	4.3KVA	5.2KVA	6.1KVA
Rated input current	110V:37.0A 230V:27.6A	110V:41.1V 230V:38.0V	110V:43.1A 230V:38.5A
No-load voltage	16.5-23V	16.5-24V	16.5-25.5V
Wire Size	0.8mm,0.9mm,1.0mm	0.8mm,0.9mm,1.0mm	0.8mm,0.9mm,1.0mm
Protective class	IP21S	IP21S	IP21S
Wire Feeder	Inside	Inside	Inside
Weight	14Kg	14.5Kg	14.5Kg
Output current	110V:30-130A 230V:40-180A	110V:40-140A 230V:40-200A	110V:40-150A 230V:40-250A
Wire feeding speed	2.5-14m/min	2.5-14m/min	2.5-14m/min
Usable thickness	0.8above(mm)	0.8above(mm)	0.8above(mm)

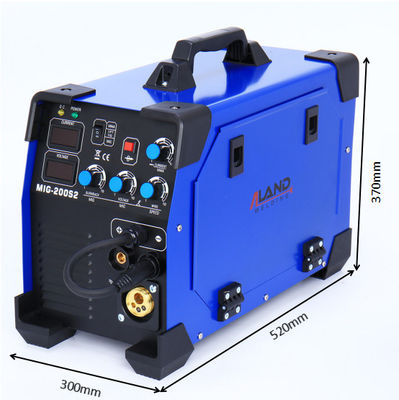

Dimension	520mm300mm370mm	520mmx300mmx370mm	520mmx300mmx370mm
Power factor	Insulation class	Duty Cycle at 40℃	Efficiency
0.85	F	0.3	0.85

4. Analysis of product buying points

* Adopt Advanced IGBT inverter and PWM technology.
* MIG/MMA/Lift-TIG 3 IN 1 machine. Built-in arc force and hot start.
* Internal wire feeder, gear driven, support MAX 5kgs wire feeding
* Burn-back function is adjustable, easy to remove tip ball.
* With GAS(solid) and GASLESS (flux) wire function.
* 3PCstructure is available, high duty cycle and easy to repair.

5. Product features

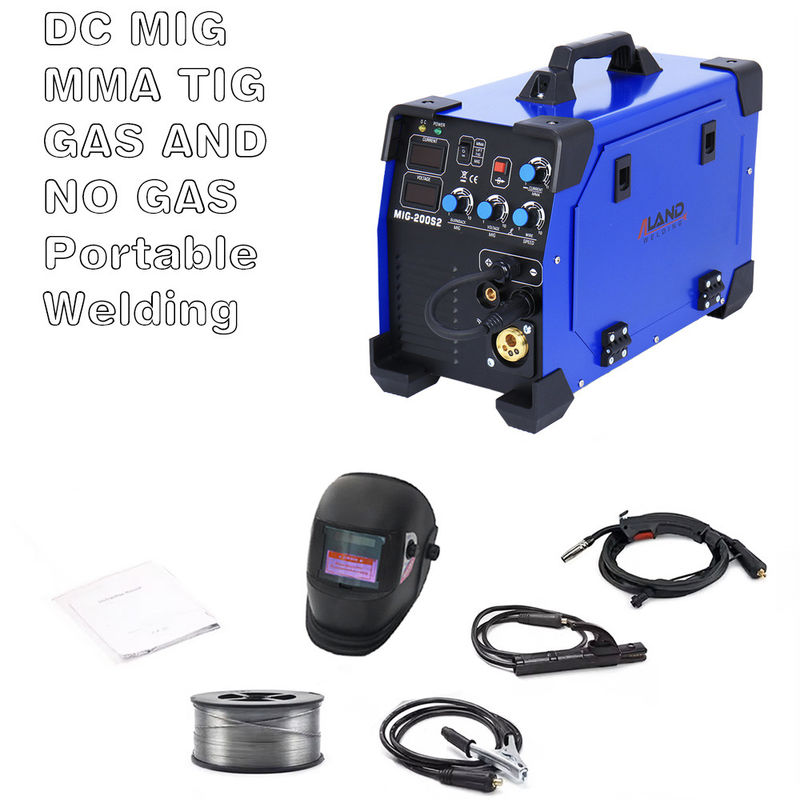

6. Product configuration

Serial Number	Name	Specification	Quantity
1	MlG torch	3m	1
2	Electrode Holder	3m	1
3	Earth Clamp	3m	1

7. Application scenarios

1、Market positioning: It belongs to civilian grade; small gas shielded welding market, such as containers, small steel structures,
doors and windows, guardrails and stage frames, sheet metal and other mechanical processing, manufacturing, furniture
manufacturing, electric/bicycle industry, fire-fighting equipment and other industries.
2、Suitable for welding carbon steel, stainless steel, alloy steel, etc., and can achieve rapid spot welding.

8. Buyer comments

Beijing Aland Welding Co., Ltd. is a professional manufacturer and exporter of high quality welding products and welding solutions.

We are proud to provide One Stop Solution for All Your Welding Needs.

We have professional factories of welding equipment, high efficiency production line and high-precision testing equipment, talented workers, and strict quality management

Quality First and Enjoy Work is our company principle.

We recognized that the pursuit of better quality and continuous Innovation is vital to improve competitiveness and obtain business success. Most of our products have gotten CE, GS and other suitable certificate. We always provide our customers -Quality Products, Competitive Price, On-time Delivery and Excellent Services.

Our products have been exported to market of Europe, North/South America, Southeast Asia

Oceania, Africa. We are Aland Welding, your reliable parner for Quality Welding! We are willing to grow up and develop with you together.
