Name: 200A Double Pulse Mig Welding Machine Welding Machine Manufacturer 220V Mig Aluminum Welder
Brand: Beijing Aland Welding Co., Ltd.
Availability: InStock

Home Products Pulse MIG Welding Machine

200A Double Pulse Mig Welding Machine Welding Machine Manufacturer 220V Mig Aluminum Welder

Product Details:

Place of Origin:	Beijing, China
Brand Name:	ALAND

Contact Now

Detailed Product Description

Material / Metal Processed:	Aluminium Alloy	Rated Input Voltage:	220V
Wire Melting Type:	Globular Transfer	Max. Load Power Capacity:	6.7KVA
Rated Output Voltage:	220V	Welding Current/voltage Range:	220V
Rated Duty Cycle @40°c (mig):	35%	Wire Feeding Speed:	12
Condition:	New	Dimensions:	560240460
Usage:	MIG Welding	Weight (kg):	13
Warranty:	1 Year	Feature:	INVERTER
Engine Power:	Electric(dc), Electric(ac)	Mig Solid Wire Diameter Mm:	0.8mm, 1.0mm, 1.6mm, 1.2MM
Model:	PULSEMIG200P	Power Supply Voltage:	1*230V 50/60Hz
Rate Input Capacity (KVA):	6.7	Rate Input Current(A):	29
No Load Voltage:	60	Output Current Range:	MIG10-200A.TIG:10- 200A,MMA:10-175A
Duty Cycle:	35%	Weight:	13kg
LWH(mm):	560240460

1. Introduction to welding machine

The PULSE MIG200P is a versatile digital control IGBT inverter welding machine that supports DC MMA, pulse TIG, and double pulse MIG welding. Equipped with a 32-bit MCU and SYNERGIC MIG mode, it offers easy operation and exceptional performance. This machine is ideal for industries such as automotive manufacturing and repair, construction, machinery fabrication, and metal processing, efficiently welding a wide range of materials from thin sheets to thick plates.

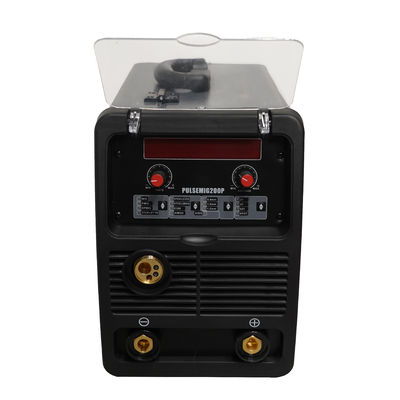

2.Panel display

3.Attribute table

Model	PULSEMIG160P	PULSEMIG200P	PULSEMIG250P
Power Supply Voltage	1*230V 50/60Hz	1*230V 50/60Hz	1*230V 50/60Hz
Rate Input Capacity (KVA)	4.8	6.7	9.5
Rate Input Current(A)	21	29	40
No Load Voltage	60	60	60
Output current Range	MIG10-160A, TIG:10 160A. MMA:10-130A	MIG10-200A, TIG:10- 200A, MMA:10-175A	MIG10-250A, TIG:10- 250A, MMA:10-200A
Duty Cycle	35%	35%	35%
Weight	12kg	13kg	15kg
LWH(mm)	560240460	560240460	560240460

4. Analysis of product buying points

DESCRIPTION

*Digital Control IGBT inverter DC MMA Pules TIG and Double *Pulse Mig

*Lift TIG

*Hot arc start and arc force, Anti-stick for MMA

*32 bits MCU inside

*LED or LCD display

*2T/4T Special 2T/4T and spot

*Easy weld more than 16(65)kinds of materieals

*100/200 wire spool

*2rollers wire feeder

*SYNERGIC mig,singer pluse and double pulse

5. Application scenarios

Bridge Welding

This welding machine performs excellently in bridge welding with its IGBT high-frequency inverter technology and multi-functional support. It has stable arc, deep penetration, supports gas shielded/gasless welding and aluminum welding. The single PCB design is light and efficient, adapts to complex construction requirements, and is a reliable choice for bridge projects.

Shipbuilding Welding

This welding machine is specially designed for the shipbuilding industry. It adopts IGBT high-frequency inverter technology and supports gas-shielded/gasless welding and aluminum welding. It has stable arc and strong penetration, and can meet the
high-strength requirements of ship hull steel structures. The lightweight design and multi-functional support are suitable for complex welding in multiple scenarios, making it an efficient and reliable high-quality choice for the shipbuilding industry.

Pipe Welding

This welding machine performs well in pipeline welding. Relying on IGBT high-frequency inverter technology and stable arc, it supports gas-shielded/gasless welding and adapts to the welding needs of a variety of materials and locations. Its lightweight
design and efficient energy utilization ensure welding quality and strength, making it an ideal tool in pipeline construction.

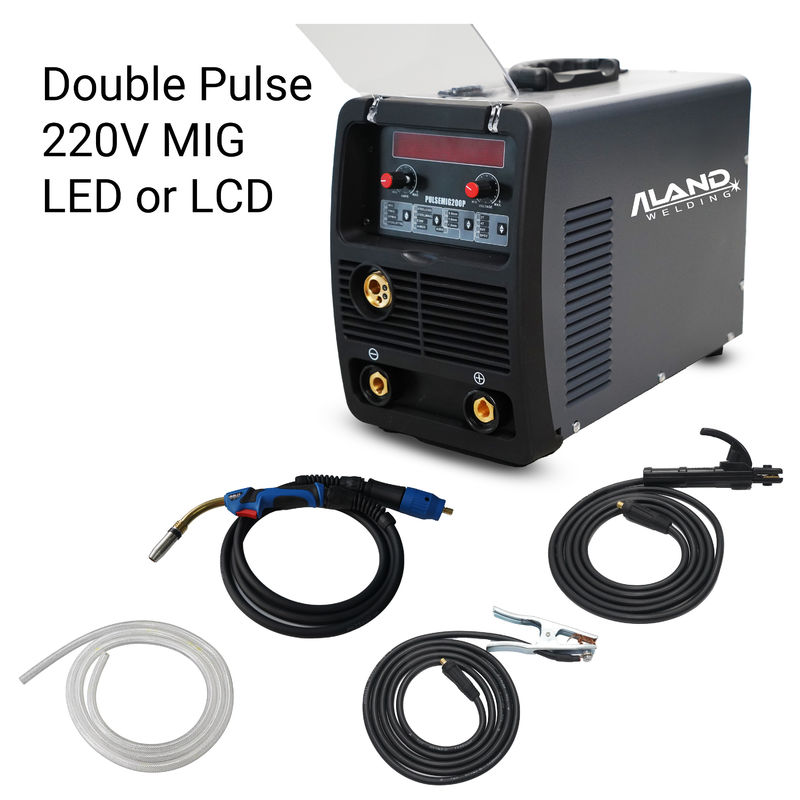

6. Product configuration

Serial Number	Name	Specification	Quantity
1	MlG Torch	3m	1
2	Earth Clamp	3m	1
3	Electrode Holder	3m	1
4	Gas Hose	2m	1

OPTIONAL ACCESSORIES

Serial Number	Name	Specification	Quantity
1	Spool gun		1
2	Regulator		1
