Name: 230V MINI MIG MMA Welding 180A Small MIG Welder
Brand: Beijing Aland Welding Co., Ltd.
Availability: InStock

Home Products GMAW(MIG/MAG) Welding Machine

230V MINI MIG MMA Welding 180A Small MIG Welder

Product Details:

Place of Origin:	Beijing, China
Brand Name:	ALAND

Contact Now

Detailed Product Description

Material / Metal Processed:	Carbon Steel,stainless Steel	Rated Input Voltage:	230 V
Wire Melting Type:	Spray Transfer	Max. Load Power Capacity:	6.1KVA
Rated Output Voltage:	230 V	Welding Current/voltage Range:	35-180A
Rated Duty Cycle @40°c (mig):	85%	Wire Feeding Speed:	13
Condition:	New	Dimensions:	330155250MM
Usage:	Welding	Weight (kg):	6.5
Warranty:	1 Year	Feature:	MINI Welder
Engine Power:	Electric(dc)	Mig Solid Wire Diameter Mm:	1.2MM
Power Supply Voltage:	AC 230V+10%(50/60HZ)	Max.Power Consumption:	6.1KVA
Rated Input Current:	26.5A	No-load Voltage:	53V
Wire Size:	0.6mm ,0.8mm ,0.9mm	Protective Class:	IP21S
Diameters Of Reels With Wire:	D100mm	Weight:	6.5Kg
Welding Current Range(A):	MIG:35-180A,MMA:20-160A	Wire Feeding Speed:	2-13m/min

FEATURES

1. High-power full-bridge circuit board.

2.Max MlG real welding current can reach 180A, MMA is 160A.

3. MIG & MMA function in one machine.

4. Advanced lGBT technology, compact design, lightweight, and energy saving

5.Automatic over-current, over-heat and over-voltage protection.

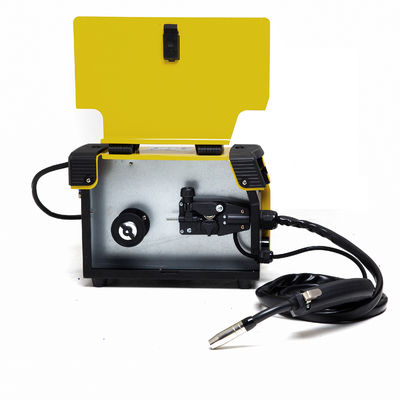

6.Internal wire feeder, gear driven, support 1kg wire feeding.

7. Integrated MlG torch with 2.5m cable,also can put inside the shell, easy to carry around

Power supply voltage	AC 230V±10%(50/60HZ)
Max.Power consumption	6.1KVA
Rated input current	26.5A
No-load voltage	53V
Wire Size	0.6mm,0.8mm,0.9mm
Protective class	IP21S
Diameters of reels with wire	D100 mm
Weight	6.5 Kg
Welding current	MIG :35-180A MMA:20-160A
Wire feeding speed	2-13m/min
Welding voltage	MIG :15-23V
Dimension	330mm155mm250mm
Power factor	0.85
Insulation class	F
Duty Cycle at 40℃	25%
Efficiency	85%

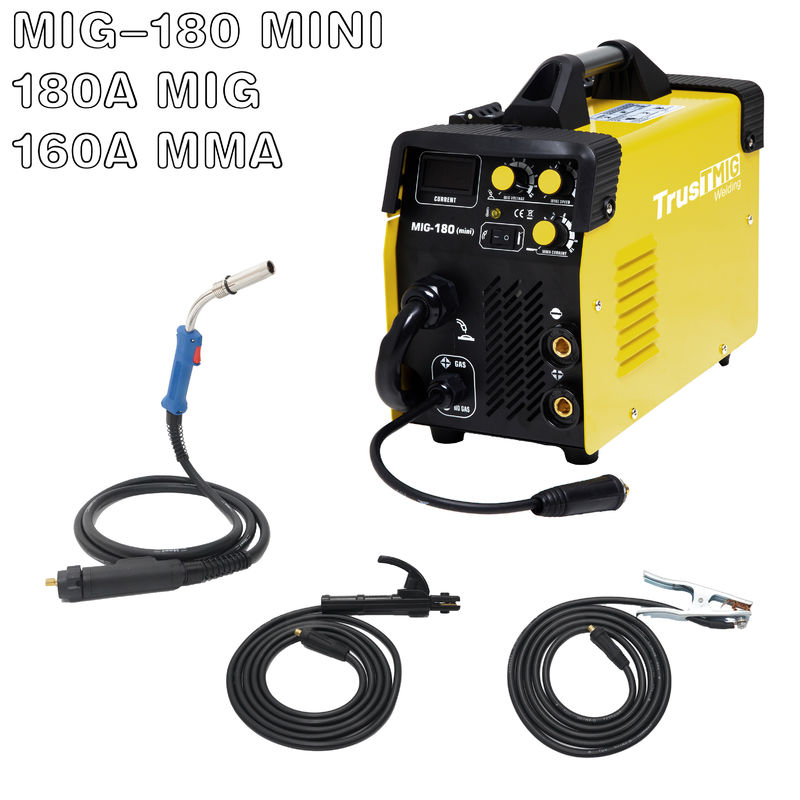

Accessories

MlG torch 3m

Electrode Holder

Earth Clamp

Beijing Aland Welding Co., Ltd. is a professional manufacturer and exporter of high quality welding products and welding
solutions.We are proud to provide One Stop Solution for All Your Welding Needs.
We have professional factories of welding equipment, high efficiency production line and high-precision testing equipment, talented workers, and strict quality management
Quality First and Enjoy Work is our company principle.
We recognized that the pursuit of better quality and continuous Innovation is vital to improve competitiveness and obtain business success. Most of our products have gotten CE, GS and other suitable certificate. We always provide our customers -Quality
Products, Competitive Price, On-time Delivery and Excellent Services.
Our products have been exported to market of Europe, North/South America, Southeast Asia
Oceania, Africa. We are Aland Welding, your reliable parner for Quality Welding! We are willing to grow up and develop with you together.
