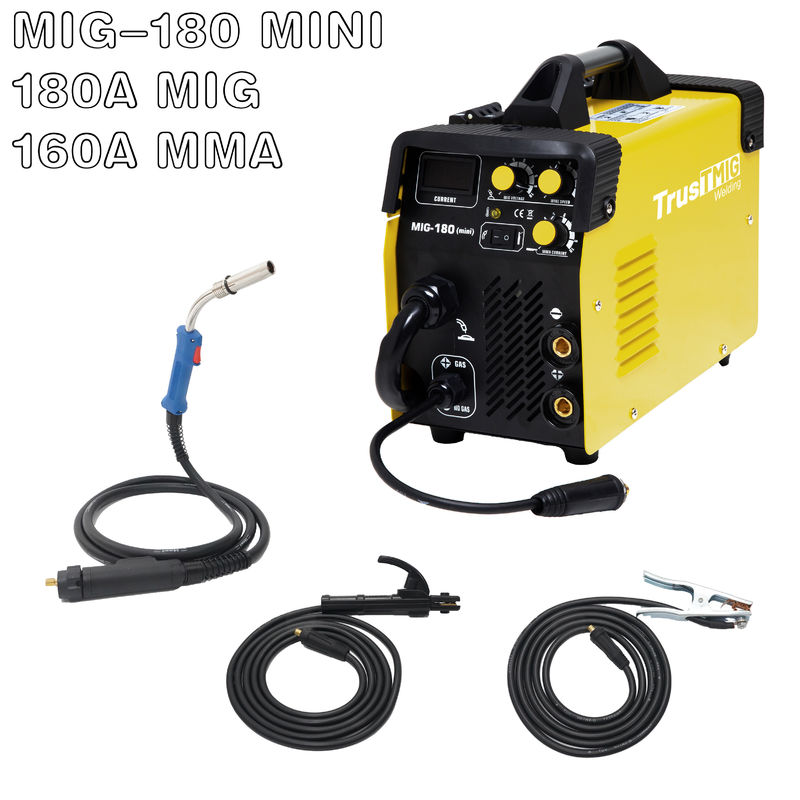

Name: 180A MINI MIG Welder 2 in 1 MIG MMA Welding Machine Portable Small Arc Weld
Brand: Beijing Aland Welding Co., Ltd.
Availability: InStock

Home Products GMAW(MIG/MAG) Welding Machine

180A MINI MIG Welder 2 in 1 MIG MMA Welding Machine Portable Small Arc Weld

Product Details:

Place of Origin:	Beijing, China
Brand Name:	ALAND

Contact Now

Detailed Product Description

Material / Metal Processed:	Carbon Steel,stainless Steel	Rated Input Voltage:	230 V
Wire Melting Type:	Spray Transfer	Max. Load Power Capacity:	6.1KVA
Rated Output Current:	180A	Rated Output Voltage:	230 V
Welding Current/voltage Range:	35-180A	Rated Duty Cycle @40°c (mig):	85%
Wire Feeding Speed:	13 M/min	Condition:	New
Dimensions:	330155250MM	Usage:	Welding
Weight (kg):	6.5 KG	Warranty:	1 Year
Feature:	MINI Welder	Power Supply Voltage:	AC 230V+10%(50/60HZ)
Max.Power Consumption:	6.1KVA	Rated Input Current:	26.5A
No-load Voltage:	53V	Wire Size:	0.6mm ,0.8mm ,0.9mm
Protective Class:	IP21S	Diameters Of Reels With Wire:	D100mm
Weight:	6.5Kg	Welding Current Range(A):	MIG:35-180A,MMA:20-160A
Wire Feeding Speed:	2-13m/min	Key Selling Points:	Easy To Operate
Applicable Industries:	Machinery Repair Shops, Manufacturing Plant, Home Use, Retail, Other	Machinery Test Report:	Not Available
Video Outgoing-inspection:	Not Available	Year:	2024

FEATURES

1. High-power full-bridge circuit board.

2.Max MlG real welding current can reach 180A, MMA is 160A.

3. MIG & MMA function in one machine.

4. Advanced lGBT technology, compact design, lightweight, and energy saving

5.Automatic over-current, over-heat and over-voltage protection.

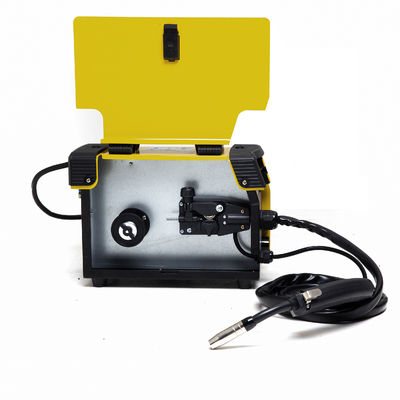

6.Internal wire feeder, gear driven, support 1kg wire feeding.

7. Integrated MlG torch with 2.5m cable,also can put inside the shell, easy to carry around

Power supply voltage	AC 230V±10%(50/60HZ)
Max.Power consumption	6.1KVA
Rated input current	26.5A
No-load voltage	53V
Wire Size	0.6mm,0.8mm,0.9mm
Protective class	IP21S
Diameters of reels with wire	D100 mm
Weight	6.5 Kg
Welding current	MIG :35-180A MMA:20-160A
Wire feeding speed	2-13m/min
Welding voltage	MIG :15-23V
Dimension	330mm155mm250mm
Power factor	0.85
Insulation class	F
Duty Cycle at 40℃	25%
Efficiency	85%

Accessories

MlG torch 3m

Electrode Holder

Earth Clamp
