Name: 220V Long Time Welding Portable MIG Welding Machine Bridge Building Shipbuilding Pipeline Welding Mig Welders
Brand: Beijing Aland Welding Co., Ltd.
Availability: InStock

Home Products GMAW(MIG/MAG) Welding Machine

220V Long Time Welding Portable MIG Welding Machine Bridge Building Shipbuilding Pipeline Welding Mig Welders

Product Details:

Place of Origin:	Beijing, China
Brand Name:	ALAND

Contact Now

Detailed Product Description

Material / Metal Processed:	Carbon Steel	Rated Input Voltage:	220V, 230V
Wire Melting Type:	Globular Transfer	Max. Load Power Capacity:	6.8KVA
Rated Output Voltage:	230V, 220V	Welding Current/voltage Range:	220V
Rated Duty Cycle @40°c (mig):	35%	Wire Feeding Speed:	12
Condition:	New	Dimensions:	410210330MM
Usage:	MIG Welding	Weight (kg):	15
Warranty:	1 Year	Feature:	INVERTER
Mig Solid Wire Diameter Mm:	Other	Model:	PROMIG180
Power Supply Voltage:	1*230V 50/60Hz	Rate Input Capacity (KVA):	6.8
Rate Input Current(A):	29	No Load Voltage:	70
Output Current Range:	MIG:30-180A, MMA:15-160A	Duty Cycle:	35%

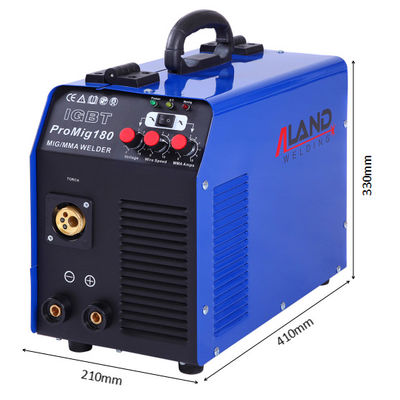

Weight:	15KG	LWH(mm):	410210330

1. Introduction to welding machine

This IGBT High-Frequency Inverter MIG/MMA Welder features a single PCB design for stable performance and easy operation. It supports both gas and gasless welding, smooth aluminum welding with a spool gun, and is compatible with 100/200mm wire spools. Powered by single-phase electricity, it’s the perfect choice for efficiency and versatility in welding tasks.

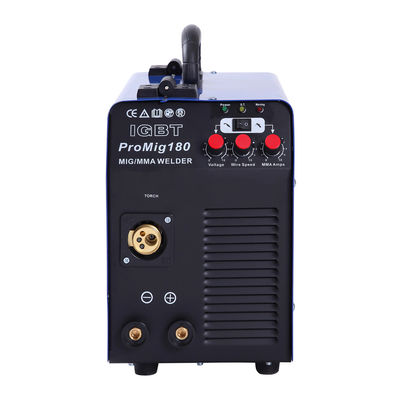

2.Panel display

3.Attribute table

Model	PROMIG140	PROMIG180	PROMIG250
Power Supply Voltage	1*230Vor 110V 50/60Hz	1*230V 50/60Hz	1*230V 50/60Hz
Rate Input Capacity (KVA)	4.4	6.8	9.2
Rate Input Current(A)	20	29	40
No Load Voltage	60	70	74
Output current Range	MIG:25-140A	MIG:30- 180A, MMA:15-160A	MIG:30-250A, MMA:20-200A
Duty Cycle	35%	35%	35%
Weight	12KG	15KG	16KG
LWH(mm)	440220320	410210330	410210310

4. Analysis of product buying points

DESCRIPTION

IGBT high frequancy inverter DC MMA, Mig

Single pcb style design

Easy operation.

100/200mm wire spool spool

Gas and no gas

Single phase power

Smooth weld Aluminum with spool gun

Stable quality

5. Application scenarios

Bridge Welding

This welding machine performs excellently in bridge welding with its IGBT high-frequency inverter technology and multi-functional support. It has stable arc, deep penetration, supports gas shielded/gasless welding and aluminum welding. The single PCB design is light and efficient, adapts to complex construction requirements, and is a reliable choice for bridge projects.

Shipbuilding Welding

This welding machine is specially designed for the shipbuilding industry. It adopts IGBT high-frequency inverter technology and supports gas-shielded/gasless welding and aluminum welding. It has stable arc and strong penetration, and can meet the high-strength requirements of ship hull steel structures. The lightweight design and multi-functional support are suitable for complex welding in multiple scenarios, making it an efficient and reliable high-quality choice for the shipbuilding industry.

Pipe Welding

This welding machine performs well in pipeline welding. Relying on IGBT high-frequency inverter technology and stable arc, it supports gas-shielded/gasless welding and adapts to the welding needs of a variety of materials and locations. Its lightweight design and efficient energy utilization ensure welding quality and strength, making it an ideal tool in pipeline construction.

6. Product configuration

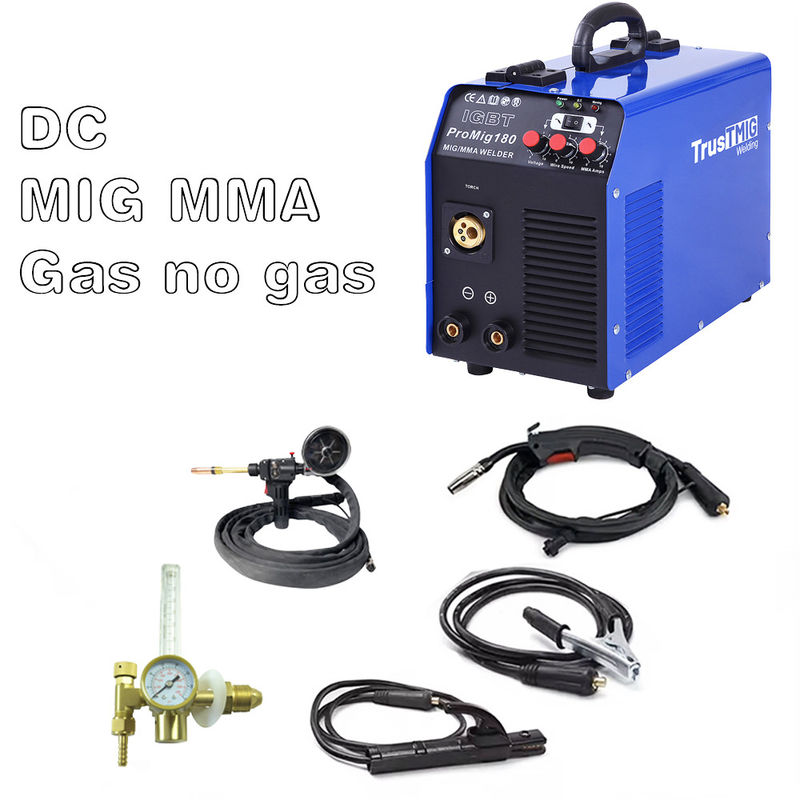

ACCESSORIES

Serial Number	Name	Specification	Quantity
1	MlG Torch	3m	1
2	Earth Clamp	3m	1
3	Gas Hose	2m	1

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

Serial Number	Name	Specification	Quantity
1	Spool gun	2m	1
2	Regulator		1
3	Electrode Holder	2m	1
