Name: ALAND IGBT Digital Display MIG Welding Machine Mig Mma Welders 380V Long Time Welding
Brand: Beijing Aland Welding Co., Ltd.
Availability: InStock

Home Products GMAW(MIG/MAG) Welding Machine

ALAND IGBT Digital Display MIG Welding Machine Mig Mma Welders 380V Long Time Welding

Product Details:

Place of Origin:	Beijing, China
Brand Name:	ALAND

Contact Now

Detailed Product Description

Material / Metal Processed:	Carbon Steel	Rated Input Voltage:	380V
Wire Melting Type:	Globular Transfer	Max. Load Power Capacity:	9.2KVA
Rated Output Voltage:	380V	Welding Current/voltage Range:	380V
Rated Duty Cycle @40°c (mig):	35%	Wire Feeding Speed:	12
Condition:	New	Dimensions:	515290370MM
Usage:	MIG Welding	Weight (kg):	20
Warranty:	1 Year	Feature:	INVERTER
Mig Solid Wire Diameter Mm:	Other	Model:	PROMIG250-3
Power Supply Voltage:	1*380V 50/60Hz	Rate Input Capacity (KVA):	9.2
Rate Input Current(A):	13	No Load Voltage:	74
Output Current Range:	MIG:30-250A, MMA:20-200A	Duty Cycle:	35%
Weight:	20KG	LWH(mm):	515290370

1. Introduction to welding machine

This welding machine uses advanced IGBT high-frequency inverter technology, supports DC MMA and MIG welding, and is suitable for a variety of welding scenarios. Its compact Singer PCB design provides excellent circuit stability and is easy to operate. The equipment supports 300mm wire roll and double roller wire feeder to ensure welding continuity and high-quality output. Compatible with gas and gasless welding modes to meet the needs of different materials and environments. The single-phase power supply design is both energy efficient and portable, making it ideal for home work, small industry and maintenance work.

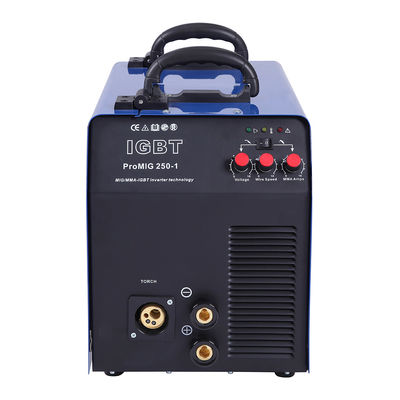

2.Panel display

3.Attribute table

Model	PROMIG250-1	PROMIG250-3
Power Supply Voltage	1*220V 50/60HZ	1*380V 50/60Hz
Rate Input Capacity (KVA)	9.2	9.2
Rate Input Current(A)	40	13
No Load Voltage	74	74
Output current Range	MIG:30- 250A, MMA:20-200A	MIG:30-250A, MMA:20-200A
Duty Cycle	60%	35%
Weight	24KG	20KG
LWH(mm)	515290370	515290370

4. Analysis of product buying points

DESCRIPTION

*IGBT high frequancy inverter DC MMA, Mig

*Singer pcb design

*Easy operation

*300mm wire spool

*2rollers wire feeder

*Gas and no gas

*Single phase power

5. Application scenarios

Bridge Welding

This welding machine performs excellently in bridge welding with its IGBT high-frequency inverter technology and multi-functional support. It has stable arc, deep penetration, supports gas shielded/gasless welding and aluminum welding. The single PCB design is light and efficient, adapts to complex construction requirements, and is a reliable choice for bridge projects.

Shipbuilding Welding

This welding machine is specially designed for the shipbuilding industry. It adopts IGBT high-frequency inverter technology and supports gas-shielded/gasless welding and aluminum welding. It has stable arc and strong penetration, and can meet the high-strength requirements of ship hull steel structures. The lightweight design and multi-functional support are suitable for complex welding in multiple scenarios, making it an efficient and reliable high-quality choice for the shipbuilding industry.

Pipe Welding

This welding machine performs well in pipeline welding. Relying on IGBT high-frequency inverter technology and stable arc, it supports gas-shielded/gasless welding and adapts to the welding needs of a variety of materials and locations. Its lightweight design and efficient energy utilization ensure welding quality and strength, making it an ideal tool in pipeline construction.

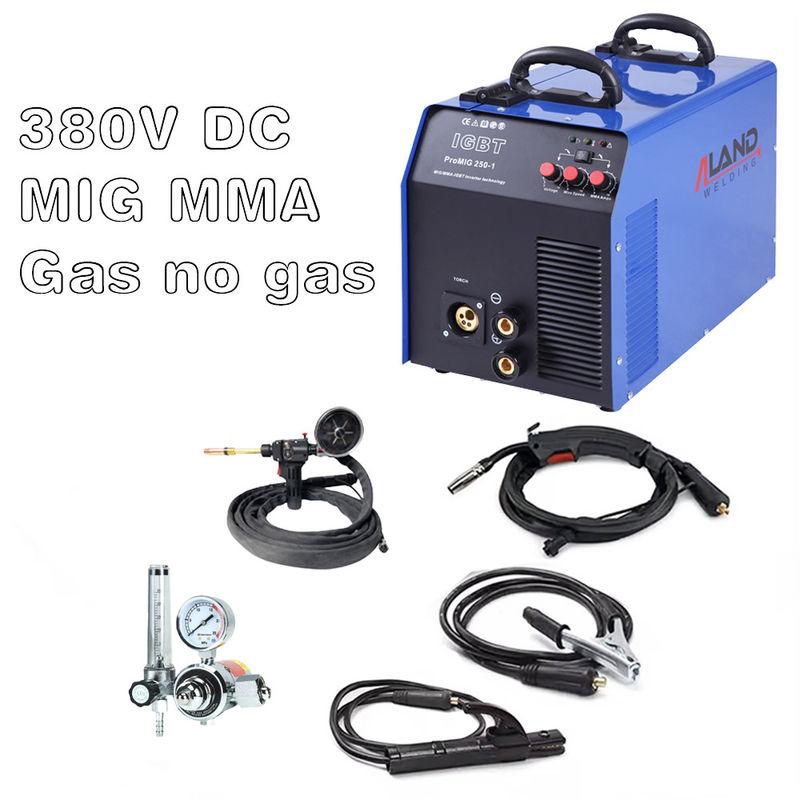

6. Product configuration

ACCESSORIES

Serial Number	Name	Specification	Quantity
1	MlG Torch	3m	1
2	Earth Clamp	3m	1
3	Gas Hose	2m	1

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

Serial Number	Name	Specification	Quantity
1	Spool gun	2m	1
2	Regulator		1
3	Electrode Holder	2m	1
