Name: Sing Phase Heavy Duty IGBT Multi Function 3IN1 250A AC DC TIG CUT MMA Welders Air Plasma Cutters With Advanced Wave Selection
Brand: Beijing Aland Welding Co., Ltd.
Availability: InStock

Home Products Multi-process Machine

Sing Phase Heavy Duty IGBT Multi Function 3IN1 250A AC DC TIG CUT MMA Welders Air Plasma Cutters With Advanced Wave Selection

Product Details:

Place of Origin:	Beijing, China
Brand Name:	ALANDWELDING

Contact Now

Detailed Product Description

Condition:	New	Machine Type:	Multi-process Machine
Warranty:	1 Year	Weight (kg):	26
Voltage:	220V~240V	Current:	5-250A
Rated Capacity:	/	Rated Duty Cycle:	60%
Dimensions:	430x200x290MM	Usage:	Welding
MODEL:	Digi-Multi 250 ACDC PULS	Voltage:	1 XAC220V~240V 50Hz
Current UP/Down-slope Time:	0~10S	Initial Current/welding Current:	5~150%
Crater-fill Current/welding Current:	5~95%	Pre Gas Flow Time:	0~25s
Post Gas Flow Time:	0~25s	Arc Starting Mode:	HF/LIFT TIG
Efficiency:	≥80%	Protection Class Of Enclosure:	IP21S
Showroom Location:	None	Video Outgoing-inspection:	Not Available
Machinery Test Report:	Not Available	Marketing Type:	Ordinary Product
Warranty Of Core Components:	1 Year	Core Components:	Motor
Key Selling Points:	Multifunctional	Applicable Industries:	Machinery Repair Shops, Manufacturing Plant, Restaurant, Home Use, Retail, Construction Works , Other

MODEL			Digi-Multi 250 ACDC PULS
INPUT	Voltage	1 xAC220V~240V 50Hz
DC MMA	No-load Voltage	70V
		Base current Adjusting Range	10~200A
		Rated Output Current	200A
		Rated Duty Cycle	60%
AC TIG	No-load Voltage	70V
		Current Adjusting Range	5~250A
		SP % (AC balance)	10~70
		AC Square Wave Frequency	30~250Hz
		Rated Duty Cycle	60%
DC TIG	Current Adjusting Range	5~250A
DC TIG		Rated Duty Cycle	60%
Standard PULSE TIG	Peak Current	5~250A
		Base/peak Current ratio	5~95%
		Rated Duty Cycle	60%
		Pulse width	5%~95%
		pulse Freq.	0.1~500Hz@DC 0.1~250Hz@AC ADV.SQUARE 0.1~10Hz@AC SOFT.SQUARE&TRIANGULAR&SINE WAVE
Advanced PULSE TIG (MIX)	AC peak Current	5~200A
		DC(base)/AC peak Current Ratio	5~95%
		Rated Duty Cycle	60%
		Pulse width	5%~95%
		pulse (AC to DC-) Freq.	0.1~10Hz
Current UP/Down-slope Time			0~10S
Initial current/welding current			5~150%
crater-fill current/welding current			5~95%
Pre gas Flow Time			0~25s
Post gas Flow Time			0~25s
Arc starting Mode			HF/LIFT TIG
CUT	current Adjusting Range	15~60A
		Rated Duty Cycle	60%
		Post gas Flow Time	20~60s
Efficiency			≥80%
Mass			26kg
Protection Class of enclosure			IP21S
Outline Dimensions mm³			430x200x290

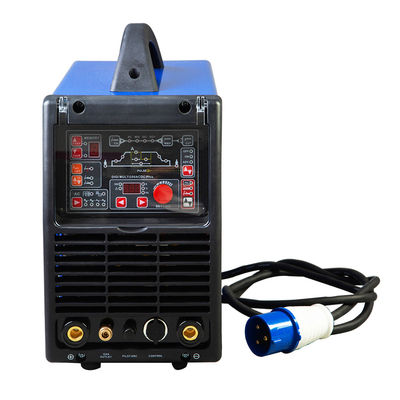

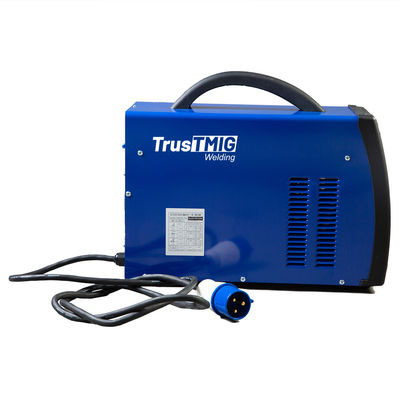

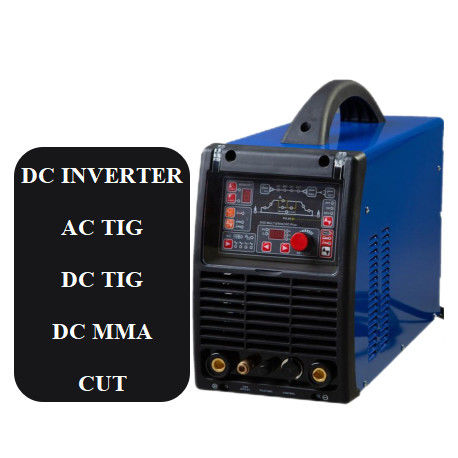

Digi-Multi 250 ACDC Welder is triple functional machine used as DC MMA/CUT AC TIG,
DC/PULSE TIG Welder. All ferrous metals copper, Aluminium ,titanium and stainless steel material can be omnibearing welding in all position.The welding current is stable and stepless adjustable.The welding seam is nice. few spatter and low noise occurs during welding.The welder is small volume,light in weight and easy to move.It is particularly suitable for enterprise of pressure vessel,building,shipping and petrochemical works. It is the priority product to replace

the NSA series welding machine.
