Name: ALAND Multi Function Welding Machine AC DC TIG MMA CUT Welding Machine Multifunctional Aluminum Welders
Brand: Beijing Aland Welding Co., Ltd.
Availability: InStock

Home Products Multi-process Machine

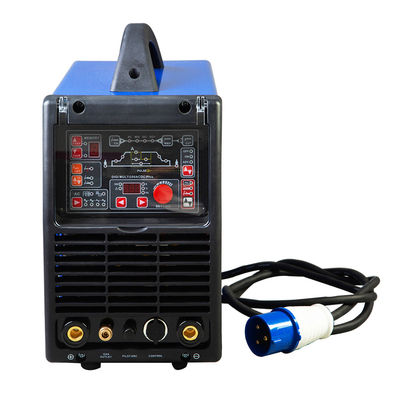

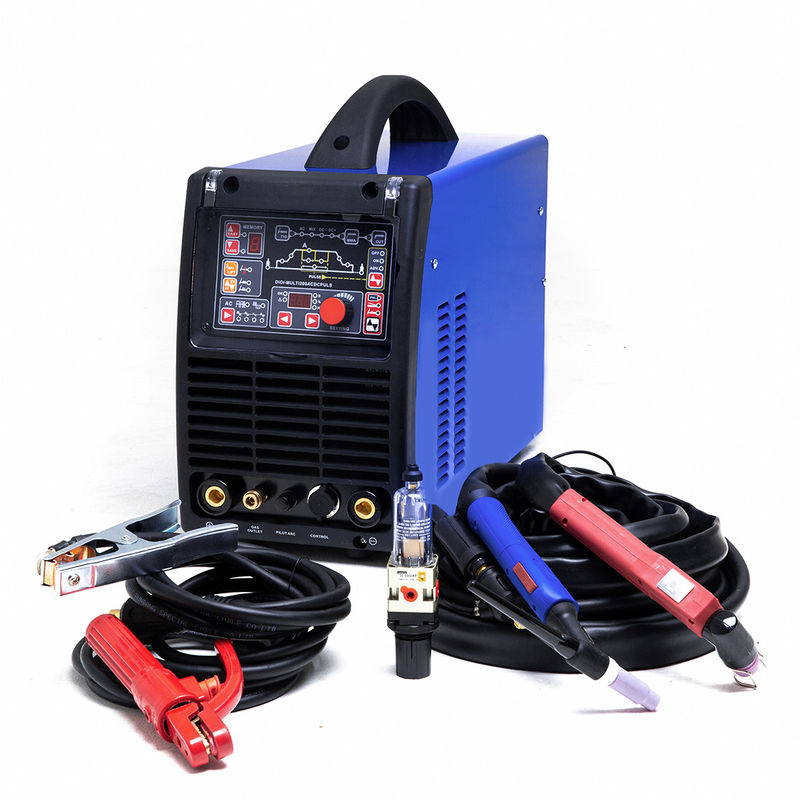

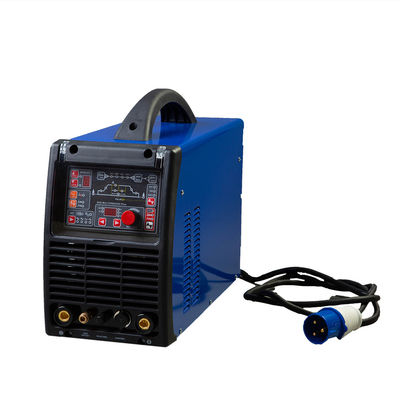

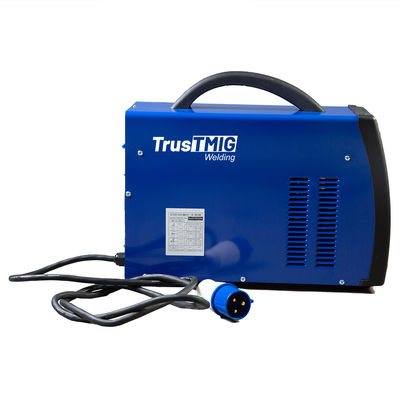

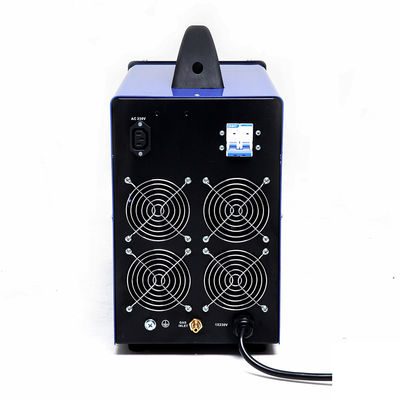

ALAND Multi Function Welding Machine AC DC TIG MMA CUT Welding Machine Multifunctional Aluminum Welders

Product Details:

Place of Origin:	Beijing, China
Brand Name:	ALANDWELDING

Contact Now

Detailed Product Description

Condition:	New	Type:	Multifunctional Tig Welders
Arc Current:	250A	Pulse Frequency:	50/60 HZ
Pilot Arc Current:	41A	Rated Duty Cycle:	60%
Motor Type:	AC DC MOTOR	Dimensions:	560240460MM
Usage:	Aluminum Welding Machine	Voltage:	230V
Power(w):	/	Weight (kg):	30 KG
Warranty:	1 Year	Power Supply Voltage:	1*230V 50/60Hz
Rate Input Capacity (KVA):	10	Rate Input Current(A):	41
No Load Voltage:	80	Output Current Range:	TIG:3-200A;AC:5-200A;MMA:10-160A;CUT:20- 50A
Duty Cycle:	60%	Weight:	30kg
LWH(mm):	560240460	Video Outgoing-inspection:	Not Available
Machinery Test Report:	Not Available	Marketing Type:	New Product 2020
Warranty Of Core Components:	1 Year	Core Components:	Motor
Key Selling Points:	Multifunctional	Applicable Industries:	Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Home Use, Retail, Construction Works , Other
Showroom Location:	None

DESCRIPTION

Digital ControlIGBT inverter DC MMA,PulseACDC TIG and CUT. Lift and HF for TIG Hot arc start and arc force,Anti-stick for MMAHF or with HF pilot arc for Plasma cutting.32 bits MCU inside Foot pedal 2T/4T function Easy operation and normal selection for tig parameters. AC and DC mix pulse TIG Advanced square,soft square,triangular;sine, fourAC wave for selection.VRD for MMA (Option) PFC (option). 10memories for selection.

MODEL			Digi-Multi 250 ACDC
INPUT	Voltage	1 xAC220V~240V 50Hz
DC MMA	No-load Voltage	70V
		Base current Adjusting Range	10~200A
		Rated Output Current	200A
		Rated Duty Cycle	60%
AC TIG	No-load Voltage	70V
		Current Adjusting Range	5~250A
		SP % (AC balance)	10~70
		AC Square Wave Frequency	30~250Hz
		Rated Duty Cycle	60%
DC TIG	Current Adjusting Range	5~250A
DC TIG		Rated Duty Cycle	60%
Standard PULSE TIG	Peak Current	5~250A
		Base/peak Current ratio	5~95%
		Rated Duty Cycle	60%
		Pulse width	5%~95%
		pulse Freq.	0.1~500Hz@DC 0.1~250Hz@AC ADV.SQUARE 0.1~10Hz@AC SOFT.SQUARE&TRIANGULAR&SINE WAVE
Advanced PULSE TIG (MIX)	AC peak Current	5~200A
		DC(base)/AC peak Current Ratio	5~95%
		Rated Duty Cycle	60%
		Pulse width	5%~95%
		pulse (AC to DC-) Freq.	0.1~10Hz
Current UP/Down-slope Time			0~10S
Initial current/welding current			5~150%
crater-fill current/welding current			5~95%
Pre gas Flow Time			0~25s
Post gas Flow Time			0~25s
Arc starting Mode			HF/LIFT TIG
CUT	current Adjusting Range	15~60A
		Rated Duty Cycle	60%
		Post gas Flow Time	20~60s
Efficiency			≥80%
Mass			26kg
Protection Class of enclosure			IP21S
Outline Dimensions mm3			430x200x290
