Name: 230V ACDC Pules TIG MMA IGBT Digital Inverter Tig Welding Aluminum Welders
Brand: Beijing Aland Welding Co., Ltd.
Availability: InStock

Home Products AC DC TIG Machine

230V ACDC Pules TIG MMA IGBT Digital Inverter Tig Welding Aluminum Welders

Product Details:

Place of Origin:	Beijing, China
Brand Name:	ALAND

Contact Now

Detailed Product Description

Material / Metal Processed:	Aluminium Alloy, Stainless Steel, Carbon Steel	Rated Input Voltage:	220V, 230V
Max. Load Power Capacity:	6.2KVA	Output Polarity:	AC/DC TIG
Rated Duty Cycle @40°c (tig):	60%	Rated Output Voltage:	220V, 230V
Welding Current/Voltage Range:	220V, 230V	Condition:	New
Pulse Frequency:	50/60HZ	Motor Type:	AC DC Motor
Dimensions:	560240460MM	Usage:	Various Metal Welding
Warranty:	1 Year	Weight (kg):	26
Feature:	Integrated Display	Plug Type:	European Plug, US PLUG, Australian Plug, British Plug
Rated Output Current:	235A	Welding Thickness:	8MM
Model:	DIGI-TIG235ACDCPULS	Power Supply Voltage:	1*230V 50/60Hz
Rate Lnput Capacity (KVA):	6.2	Rate Input Current(A):	27
No Load Voltage:	80	Output Current Range:	TIG:2(AC:3A)-235A MMA:10-200A
Duty Cycle:	60%	Weight:	26kg
L*WH(mm):	560240460

DESCRIPTION

IGBT Digital inverter ACDC,Pules TIG and MMA

Lift and HF(or HV) for TIG

32 bits MCU inside

Color LCD screen display

Foot pedal and finger amps remote control

2T/4T function

TIG Cool weld

Pulse frequancy up to 999Hz.

TIG Spot weld

TIG fast tack

Mix TIG weld

AC frequancy can up to 400Hz

AC amps can down to 3A.and DC amps can down to 2A.

Easy get high quality weld seam

PFC(Option)

Syngeric(Auto) setting. Tungsten selection En/Ep selection

Model	DIGI-TIG235ACDCPULS	DIGI-TIG325ACDCPULS
Power Supply Voltage	1*230V 50160Hz	3*400V 50/60Hz
Rate lnput Capacity (KVA)	6.2	10
Rate Input Current(A)	27	14.5
No Load Voltage	80	80
Output current Range	TIG:2(AC:3A)-235A MMA:10-200A	TIG:3(AC:5A)-400A MMA:10-315A
Duty Cycle	60%	35%
Weight	26kg	30kg
LWH(mm)	560240460	560240460

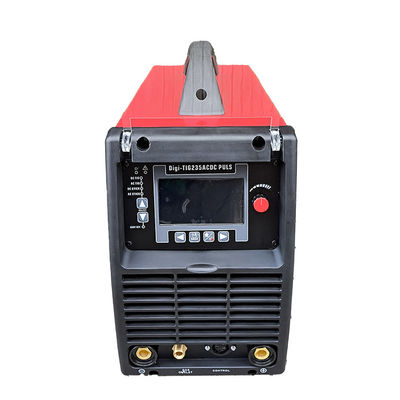

The welding machine features an LCD screen with button controls for easy and precise parameter adjustments. This modern interface ensures accuracy, reduces errors, and supports advanced functions like Synergic settings, enhancing efficiency and welding quality.

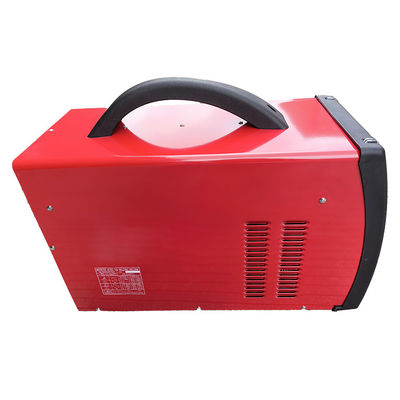

The welding machine is equipped with a built-in handle, making it more portable and convenient to carry. This design ensures ease
of transport, allowing users to work efficiently across different locations.

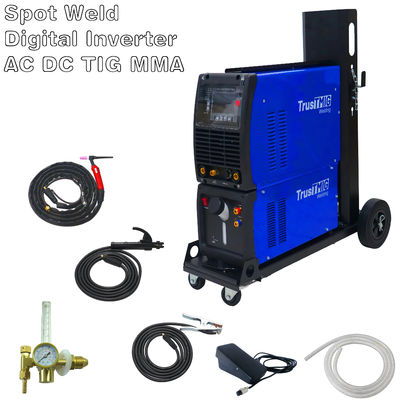

The integrated welding cart combines a water tank, welding unit, and gas cylinder, creating a compact all-in-one design. This setup simplifies the welding process, enhances mobility, and ensures a more efficient and organized workspace.

ACCESSORIES

Tig torch 4m

Earth clamp cable with 300A/500A earth clamp

Welding cable with 300AV500A electrode holder

Gas hose 2m

Serial Number	Name	Specification	Quantity
1	Tig torch	4m	1
2	Earth clamp	3m	1
3	Electrode Holder	3m	1
4	Gas hose	2m	1

OPTIONAL ACCESSORIES

Amps control tig torch

foot pedal

Regulator

Water cooler : W200

Trolley :MC205

Serial Number	Name	Specification	Quantity
1	Tig torch	4m	1
2	Foot pedal		1
3	Regulator		1
4	Water cooler		1
5	Trolley		1

Beijing Aland Welding Co., Ltd. is a professional manufacturer and exporter of high quality welding products and welding
solutions.We are proud to provide One Stop Solution for All Your Welding Needs.
We have professional factories of welding equipment, high efficiency production line and high-precision testing equipment, talented workers, and strict quality management
Quality First and Enjoy Work is our company principle.
We recognized that the pursuit of better quality and continuous Innovation is vital to improve competitiveness and obtain business success. Most of our products have gotten CE, GS and other suitable certificate. We always provide our customers -Quality
Products, Competitive Price, On-time Delivery and Excellent Services.
Our products have been exported to market of Europe, North/South America, Southeast Asia
Oceania, Africa. We are Aland Welding, your reliable parner for Quality Welding! We are willing to grow up and develop with you together.
