Name: 230V TIG AC DC Aluminium Welding 185A TIG Welders DC Mma Welder
Brand: Beijing Aland Welding Co., Ltd.
Availability: InStock

Home Products AC DC TIG Machine

230V TIG AC DC Aluminium Welding 185A TIG Welders DC Mma Welder

Product Details:

Place of Origin:	Beijing, China
Brand Name:	ALAND

Contact Now

Detailed Product Description

Material / Metal Processed:	Aluminium Alloy, Stainless Steel, Carbon Steel	Rated Input Voltage:	230 V
Max. Load Power Capacity:	6.6KVA	Output Polarity:	AC/DC TIG
Rated Duty Cycle @40°c (tig):	35%	Rated Output Voltage:	230 V
Welding Current/Voltage Range:	5-185A	Condition:	New
Pulse Frequency:	50/60HZ	Motor Type:	AC DC Motor
Dimensions:	530185325mm	Usage:	Various Metal Welding Machines
Warranty:	1 Year	Weight (kg):	18.5
Feature:	INVERTER	Plug Type:	US PLUG, European Plug, Australian Plug, British Plug
Rated Output Current:	185A	Welding Thickness:	8MM
Model:	MicroTig185DA	Power Supply Voltage:	1*230V 50/60Hz
Rate Input Capacity (KVA):	6.6	Rate Input Current(A):	29
No Load Voltage:	70	Qutput Current Range:	TIG:5-185A,MMA:5-150A
Duty Cycle:	35%	Weight:	18.5KG
LWH(mm):	530185325

1. Introduction to welding machine

DESCRIPTION

IGBT inverter DC MMA, ACDC TIG

Lift and HF for TIG

32 bits MCU inside

Analog operation panel design

7Pins connector for Foot pedal or finger AMPS adjustment

2T/4T function

Advanced square wave for AC TIG

1Hz and 10Hz easy pulse selection

Current down slope and gas post fow time adjustment

Quickly gas outlet

Carbon Steel Welding

Our welding machines ensure stable arc performance and deep penetration for carbon steel, delivering strong and reliable welds suitable for structural and fabrication applications.

Stainless Steel Welding

For stainless steel, our equipment provides clean, precise welds with excellent corrosion resistance, ideal for food-grade, medical, and architectural projects.

Aluminum Welding

Welding aluminum is made easy with advanced AC and pulse control, enabling smooth, spatter-free welds with excellent appearance and minimal distortion.

2. Attribute table

Model	MicroTig185DA
Power Supply Voltage	1*230V 50/60Hz
Rate Input Capacity (KVA)	6.6
Rate Input Current(A)	29
No Load Voltage	70
Output current Range	TIG:5-185A, MMA:5-150A
Duty Cycle	35%
Weight	8.5KG
Weight	530185325

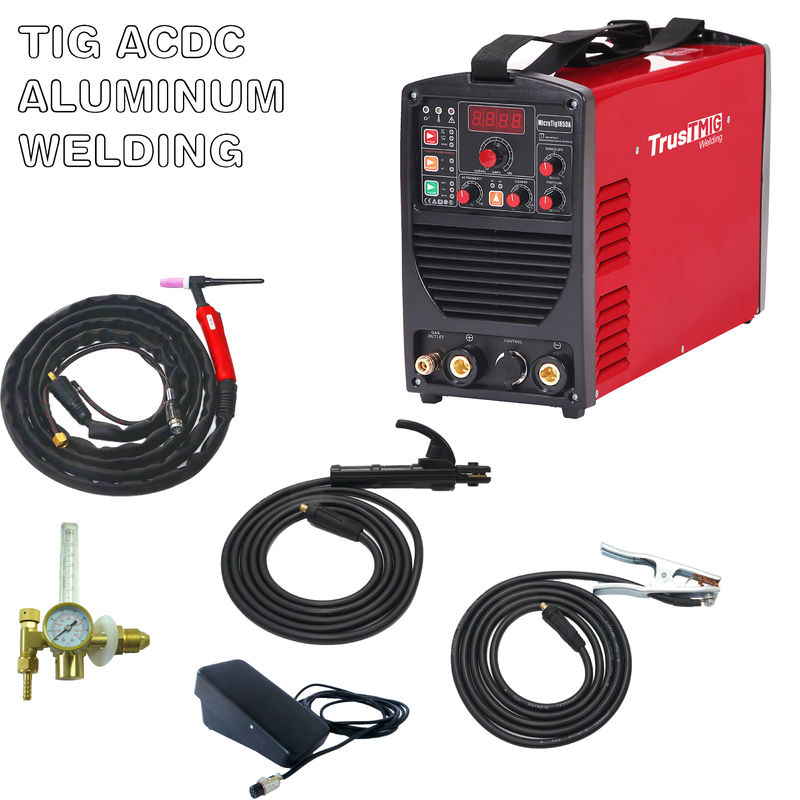

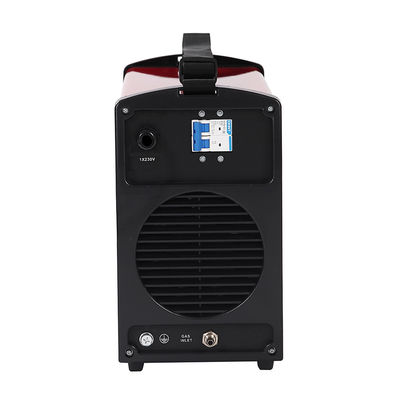

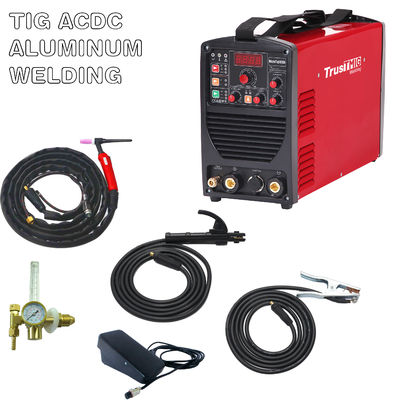

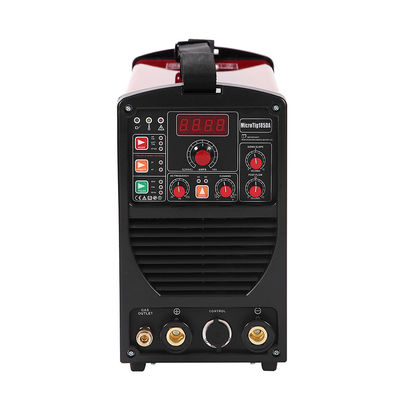

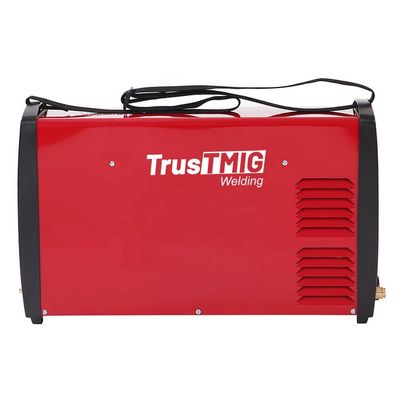

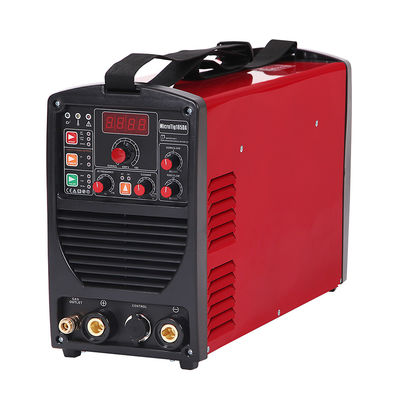

3.Product display

4.Welding machine accessories

ACCESSORIES

Serial Number	Name	Specification	Quantity
1	Tig torch	4M	1
2	Earth clamp cable	300A	1

OPTIONAL ACCESSORIES

Serial Number	Name	Specification	Specification
1	Tig torch	3M	1
2	Foot pedal		1
3	Regulator		1
4	welding clamp	3M	1
