Name: Digital Control Pulse Tig Ac Dc Aluminium Welders Tig Welding Machine 230V Tig Welder
Brand: Beijing Aland Welding Co., Ltd.
Availability: InStock

Home Products AC DC TIG Machine

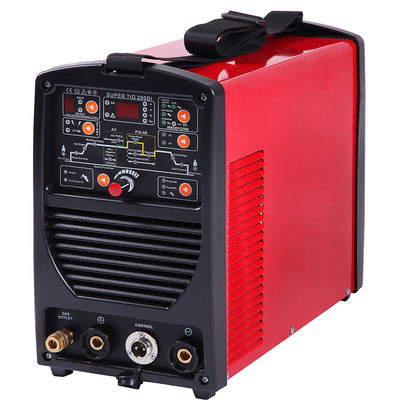

Digital Control Pulse Tig Ac Dc Aluminium Welders Tig Welding Machine 230V Tig Welder

Product Details:

Place of Origin:	Beijing, China
Brand Name:	ALAND

Contact Now

Detailed Product Description

Material / Metal Processed:	Aluminium Alloy, Carbon Steel, Other, Stainless Steel	Rated Input Voltage:	230V
Max. Load Power Capacity:	7.4KVA	Output Polarity:	AC/DC TIG
Rated Duty Cycle @40°c (tig):	35%	Rated Output Voltage:	230V
Welding Current/Voltage Range:	5-200A	Condition:	New
Pulse Frequency:	50/60HZ	Motor Type:	AC Motor
Dimensions:	435185325 Mm	Usage:	TIG MMA Welding
Warranty:	1 Year	Weight (kg):	18
Feature:	INVERTER	Plug Type:	US PLUG, European Plug, Australian Plug, British Plug
Rated Output Current:	200A	Welding Thickness:	8MM
Model:	SUPERTG200DI	Power Supply Voltage:	1*230V 50/60Hz
Rate Input Capacity (KVA):	7.4	Rate Input Current(A):	32.1
No Load Voltage:	65	Output Current Range:	TIG:5-200A,MMA:20- 160A
Duty Cycle:	35%	Weight:	18kg
LWH(mm):	435185325

1. Introduction to welding machine

This compact digital IGBT inverter supports DC MMA and pulse ACDC TIG welding with Lift and HF start modes. Features include arc force adjustment, anti-stick, 2T/4T operation, four AC waveform options, and 10 memory settings. Its MINI design and quick gas connector ensure portability and efficiency for versatile applications.

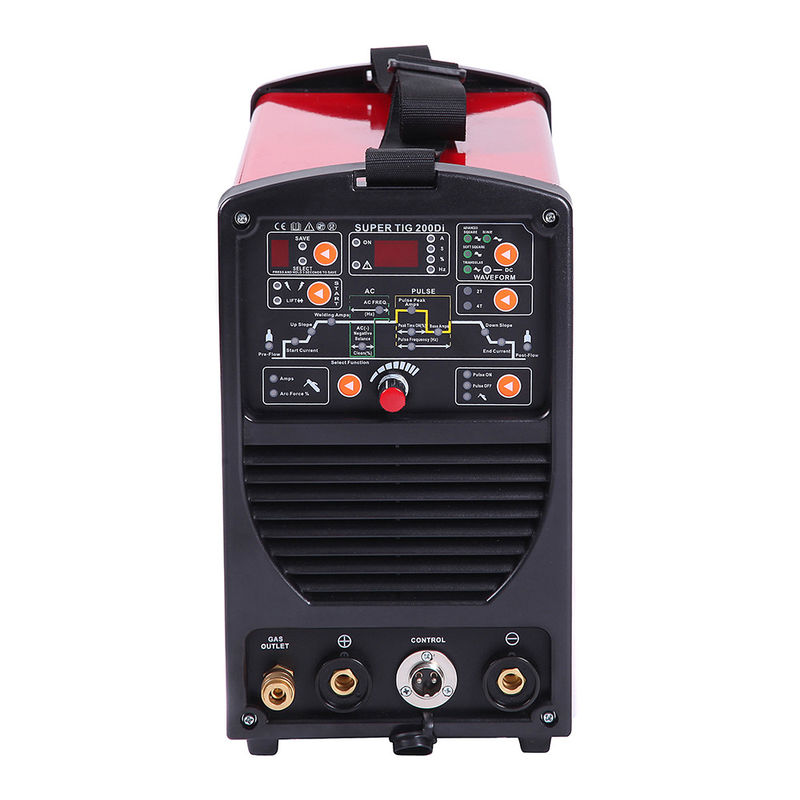

2.Panel display

3.Attribute table

Model	SUPERTIG200DI
Power Supply Voltage	1*230V 50/60Hz
Rate Input Capacity (KVA)	7.4
Rate Input Current(A)	32.1
No Load Voltage	65
Output current Range	TIG:5-200A，MMA:20- 160A
Duty Cycle	35%
Weight	18kg
LWH(mm)	435185325

4. Analysis of product buying points

DESCRIPTION

*Digital Control IGBT inverter DC *MMA,PuIse ACDC TIG

*Lift and HF for TIG

*Hot arc start and arc force,Anti-stick for MMA

*32 bits MCU inside

*Foot pedal

*2T/4T function

*Advanced square,soft square,triangular,sine four AC wave for selection.

*MINI Stlye design

*Quickly gas connector

*10 Memories selection

Carbon Steel Welding

Our welding machines ensure stable arc performance and deep penetration for carbon steel, delivering strong and reliable welds suitable for structural and fabrication applications.

Stainless Steel Welding

For stainless steel, our equipment provides clean, precise welds with excellent corrosion resistance, ideal for food-grade, medical, and architectural projects.

Aluminum Welding

Welding aluminum is made easy with advanced AC and pulse control, enabling smooth, spatter-free welds with excellent appearance and minimal distortion.

5. Product configuration

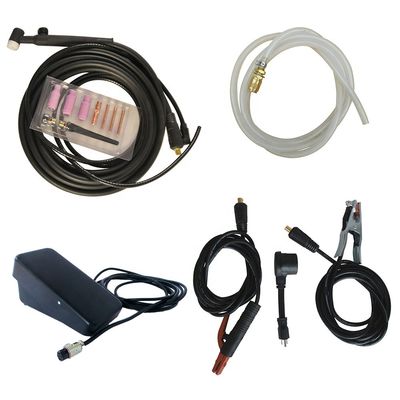

ACCESSORIES

*Tig torch 4m

*Earth clamp cablewith 300A earth clamp

*Welding cable with300A electrode holder

*Gas hose 2m

Serial Number	Name	Specification	Quantity
1	Tig Torch	4m	1
2	Electrode Holder	1m	1
3	Earth Clamp	1m	1
4	Gas Hose	2m	1

OPTIONAL ACCESSORIES

*Amps control tig torch

*foot pedal

*Regulator

*110/220V

Serial Number	Name	Specification	Quantity
1	Tig Torch	4m	1
2	Foot Pedal		1
3	Regulator		1
