Name: 400V AC DC TIG Welding Machine Aluminum Welder Pules TIG MMA Welding
Brand: Beijing Aland Welding Co., Ltd.
Availability: InStock

Home Products AC DC TIG Machine

400V AC DC TIG Welding Machine Aluminum Welder Pules TIG MMA Welding

Product Details:

Place of Origin:	Beijing, China
Brand Name:	ALAND

Contact Now

Detailed Product Description

Material / Metal Processed:	Aluminium Alloy, Stainless Steel, Carbon Steel	Rated Input Voltage:	400 V
Max. Load Power Capacity:	10KVA	Output Polarity:	AC/DC TIG
Rated Duty Cycle @40°c (tig):	35%	Rated Output Voltage:	400 V
Welding Current/Voltage Range:	3-400A	Condition:	New
Pulse Frequency:	50/60HZ	Motor Type:	AC DC Motor
Dimensions:	560240460MM	Usage:	Various Metal Welding
Warranty:	1 Year	Weight (kg):	30
Feature:	Integrated Display	Plug Type:	US PLUG, European Plug, Australian Plug, British Plug
Rated Output Current:	400A	Welding Thickness:	8MM
Model:	DIGI-TIG325ACDCPULS	Power Supply Voltage:	3*400V 50/60Hz
Rate Lnput Capacity (KVA):	10	Rate Input Current(A):	14.5
No Load Voltage:	80	Output Current Range:	TIG:3(AC:5A)-400A MMA:10-315A
Duty Cycle:	35%	Weight:	30kg
L*WH(mm):	560240460

DESCRIPTION

IGBT Digital inverter ACDC,Pules TIG and MMA

Lift and HF(or HV) for TIG

32 bits MCU inside

Color LCD screen display

Foot pedal and finger amps remote control

2T/4T function

TIG Cool weld

Pulse frequancy up to 999Hz.

TIG Spot weld

TIG fast tack

Mix TIG weld

AC frequancy can up to 400Hz

AC amps can down to 3A.and DC amps can down to 2A.

Easy get high quality weld seam

PFC(Option)

Syngeric(Auto) setting. Tungsten selection En/Ep selection

Model	DIGI-TIG235ACDCPULS	DIGI-TIG325ACDCPULS
Power Supply Voltage	1*230V 50160Hz	3*400V 50/60Hz
Rate lnput Capacity (KVA)	6.2	10
Rate Input Current(A)	27	14.5
No Load Voltage	80	80
Output current Range	TIG:2(AC:3A)-235A MMA:10-200A	TIG:3(AC:5A)-400A MMA:10-315A
Duty Cycle	60%	35%
Weight	26kg	30kg
LWH(mm)	560240460	560240460

Carbon Steel Welding

Our welding machines ensure stable arc performance and deep penetration for carbon steel, delivering strong and reliable welds suitable for structural and fabrication applications.

Stainless Steel Welding

For stainless steel, our equipment provides clean, precise welds with excellent corrosion resistance, ideal for food-grade, medical, and architectural projects.

Aluminum Welding

Welding aluminum is made easy with advanced AC and pulse control, enabling smooth, spatter-free welds with excellent appearance and minimal distortion.

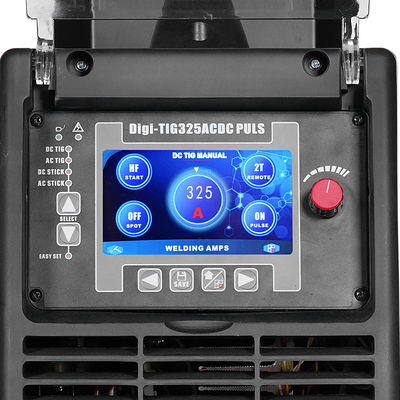

The welding machine features an LCD screen with button controls for easy and precise parameter adjustments. This modern interface ensures accuracy, reduces errors, and supports advanced functions like Synergic settings, enhancing efficiency and welding quality.

The welding machine is equipped with a built-in handle, making it more portable and convenient to carry. This design ensures ease
of transport, allowing users to work efficiently across different locations.

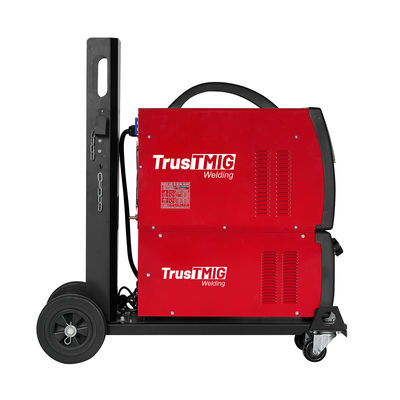

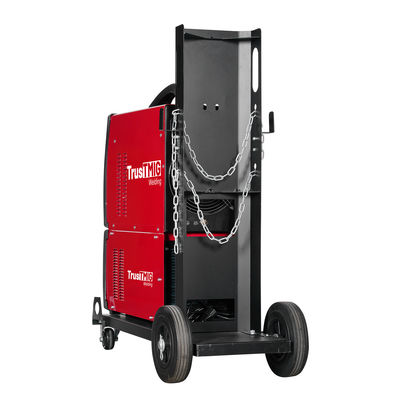

The integrated welding cart combines a water tank, welding unit, and gas cylinder, creating a compact all-in-one design. This setup simplifies the welding process, enhances mobility, and ensures a more efficient and organized workspace.

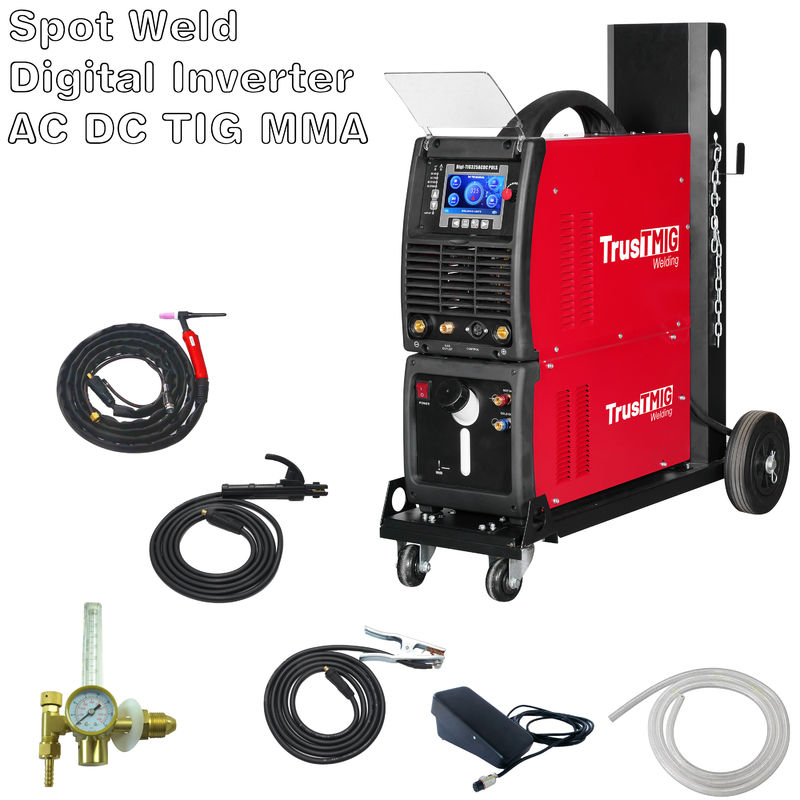

ACCESSORIES

Tig torch 4m

Earth clamp cable with 300A/500A earth clamp

Welding cable with 300AV500A electrode holder

Gas hose 2m

Serial Number	Name	Specification	Quantity
1	Tig torch	4m	1
2	Earth clamp	3m	1
3	Electrode Holder	3m	1
4	Gas hose	2m	1

OPTIONAL ACCESSORIES

Amps control tig torch

foot pedal

Regulator

Water cooler : W200

Trolley :MC205

Serial Number	Name	Specification	Quantity
1	Tig torch	4m	1
2	Foot pedal		1
3	Regulator		1
4	Water cooler		1
5	Trolley		1
