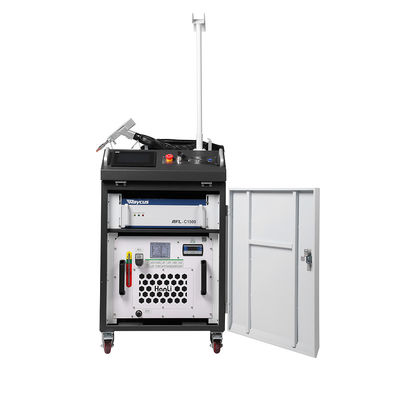

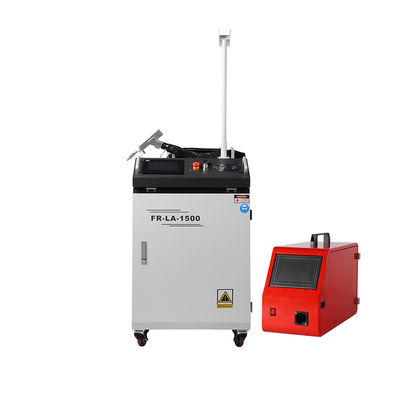

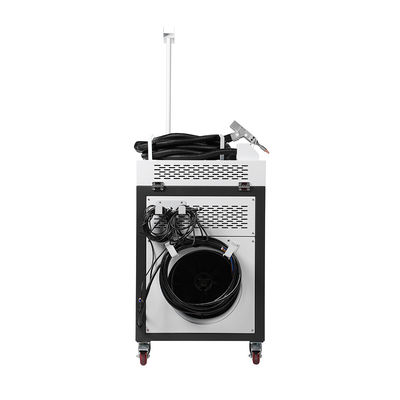

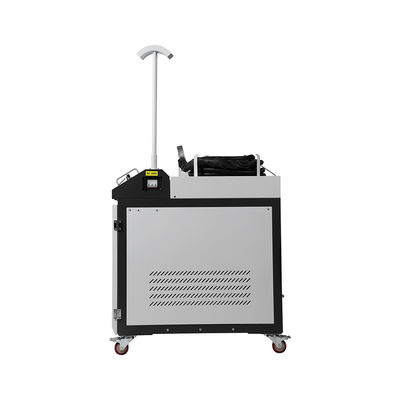

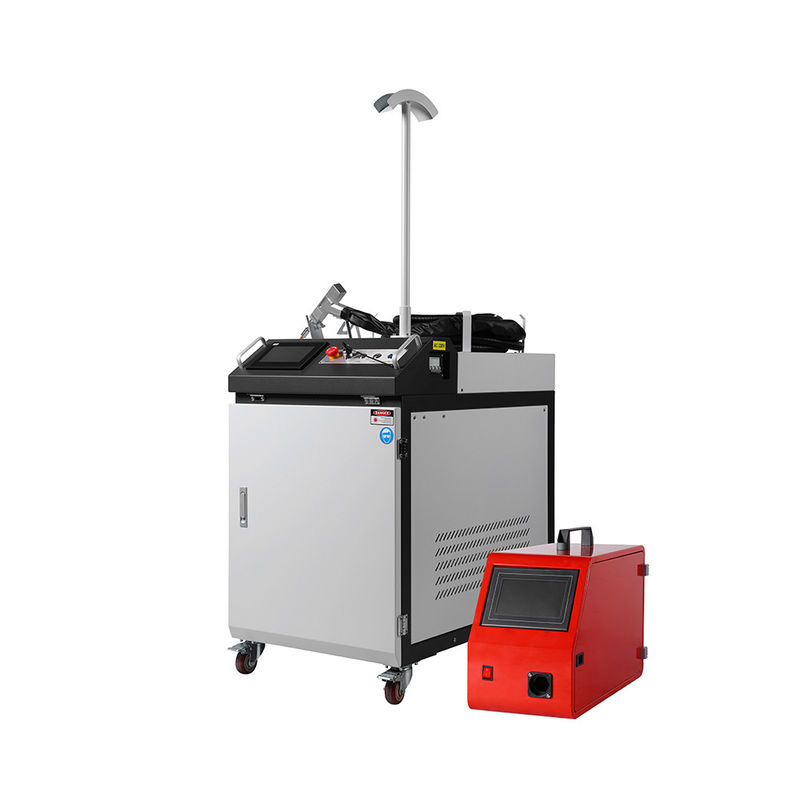

Name: Portable Multifunctional 4 in 1 Laser Fiber Welder 3000W High Power Laser Welder
Brand: Beijing Aland Welding Co., Ltd.
Availability: InStock

Home Products Laser Welding Machine

Portable Multifunctional 4 in 1 Laser Fiber Welder 3000W High Power Laser Welder

Product Details:

Place of Origin:	Beijing, China
Brand Name:	ALAND

Contact Now

Detailed Product Description

Condition:	New	Output Power:	3000w
Usage:	Precision Welding	Single Pulse Energy:	300J
Pulse Width:	0-2ms	Wavelength:	1080nm
Focal Spot Diameter:	0.2 ~ 2.0 Mm	Dimensions:	900600980mm
Warranty:	1 Year	Laser Source Brand:	ALAND
Laser Head Brand:	Other	Servo Motor Brand:	Other
Guiderail Brand:	Other	Control System Brand:	Other
Weight (kg):	170 KG	Key Selling Points:	Multifunctional
Laser Model:	Continue Or Modulation	Laser Quality:	M2<1.2
Output Power Stability:	2%	Machine Rate Input Power:	9kw
Power Supply:	3*380V,50/60Hz	Cooling System:	Input/output Temperature Controled Unit Cooler
Fiber Length:	5-10m	Environment Temperature Range:	15-35C
Welding Speed:	0-120mm/s	Fitting Wire Diameter:	0.8,1.0
Applicable Industries:	Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Home Use, Retail, Construction Works , Advertising Company	Machinery Test Report:	Not Available
Video Outgoing-inspection:	Not Available	Marketing Type:	New Product 2020
Warranty Of Core Components:	1 Year	Core Components:	Laser Power Source

Portable multifunctional 4 in 1 laser fiber welder 3000W high power laser welder

↓↓↓ ↓↓↓

Click Here To Get A Free Quote！✉

Product attribute

Model	FR-LA-1000	FR-LA-1500	FR-LA-2000	FR-LA3000
Laser Power	1000W	1500W	2000W	3000W
Power supply	1*220V, 50/60Hz			1220V or 3380V, 50/60Hz	3*380V, 50/60Hz
Welding thickness	0.5-2mm	0.5-3mm	0.5-3.5mm	0.5-4mm
Welding speed	0-120mm/s	0-120mm/s	0-120mm/s	0-120mm/s
Wire diameter (mm)	0.8,1.0	0.8,1.0,1.2	0.8,1.0,1.2,1.6	0.8,1.0,1.2,1.6
Laser model	Continuous Wave or modulation
Laser wave length	1080nm±5	1080nm±5	1080nm±5	1080nm±5
Beam quality	M2<1.2	M2<1.2	M2<1.2	M2<1.2
output power stability	2%	2%	2%	2%
Power	6kVA	8kVA	9kVA	13kVA
Cooling system	input/output temperature controlled unit cooler
Fiber length	5-10m	5-10m	5-10m	5-10m
Environment temp. range	15-35ºC	15-35ºC	15-35ºC	15-35ºC
welding seam	<=2mm	<=3mm	<=4mm	<=5mm
Welding materials	Steel, Galvanized Steel, stainless steel, Aluminum alloy
fitting wire diameter (mm)	0.8,1.0,1.2	0.8,1.0,1.2,1.6	0.8,1.0,1.2,1.6	0.8,1.0,1.2,1.6
Machine dimension(LWH)	9006001060
Machine weight	160kg	160kg	170kg	170kg

Accessories:

* Main Machine
* Fiber Laser torch with fiber cable
* Automatic Wire Feeder with cable
* Laser Torch Nozzles different size
* Feeding roller (1.2V/1.6V)
* Safety Goggle
* Data line & Liner
* Tool Box

Use effect

Main Features:

* High quality semiconductor laser and stable cooling system
* The torch with a special nozzle suitable for welding at different angles and positions on the workpiece
* Easy operation and get high welding speed and high quality
The efficiency can be up2-10 times than TIG welding and economize on manpower.
* General staff can use it and no need special training.
* Special design welding stirrer can get best laser spot and wide welding width, high quality welding seam.
* You can fit wire by a separated wire feeder
* Light hand torch with 5-10m original Fiber
* Integrated design
* Long-life Accessories and save energy, lower use cost.
* Special safety protection function for welding worker.
* Main parts with high quality and long life.

Product Packaging

WHY CHOOSE US

THE MOST IMPORTANT THINGIS THAT OUR PRODUCTS ARE GUARANTEED

FAQ.

Q1. Why Choose us?- We have nearly 10 years experience in welding industry and export to all over the world. - We have experienced R&D team. We can
adjust the parameter and panels design as per your request.
- Most of key parts are adopted top brand to ensure the quality. Such as the IGBT of Infineon (Simens). - Each machine will be
inspected before shipping. - One year warranty, life-long technical support and design service.
Q2. Could you get a customized sample?
Yes, we can adjust some configuration and parameters as your request.It also includes OEM service.
Q3. How is your quality control?
We use the world-class quality inspection to make every machine strong, powerful and reliable. We inspect with the world class
quality testing to make every single machine strong, powerful and reliable.
Inpection is full range, covered from welding power source to wire feeders, welding torches and up to welding consumables and work
safety. Whether you want to weld with 2T/4T, GAS/NO GAS, our components, which have been perfectly tuned to your requirements,
acting as excellent quality and the best possible welding results.
Q4. What voltage could you provide?110V/220v, 220/380V, 230V etc.
We can make it as per your country voltage.Q5. Can you send me the video to show how the machine works?
At present, some machines have video. We will try to make video of featured machine in future.
Q6. Do you have engineer who can guide me to install system?
Yes, we have a professional team. They can teach you how to work with it.
Q7. How long is the lead time for welding machine?
If no stockes, usually it takes 30-35 days after confirmation of order.
