Name: 1000W 1500W 2000W 3000W Laser Cleaner Welder Cutter Fiber Untuk Baja Tahan Karat/Aluminium/Baja Karbon/Tembaga
Brand: Beijing Aland Welding Co., Ltd.
Availability: InStock

Home Products Laser Welding Machine

1000W 1500W 2000W 3000W Laser Cleaner Welder Cutter Fiber Untuk Baja Tahan Karat/Aluminium/Baja Karbon/Tembaga

Product Details:

Place of Origin:	Beijing, China
Brand Name:	ALAND

Contact Now

Detailed Product Description

Condition:	New	Output Power:	1000W+
Usage:	Laser Welding/Cutting/Derusting/Cleaning	Single Pulse Energy:	300J
Pulse Width:	0-2ms	Wavelength:	1080nm
Focal Spot Diameter:	0.2 ~ 2.0 Mm	Dimensions:	900600980mm
Warranty:	1 Year	Laser Source Brand:	ALAND
Laser Head Brand:	Other	Servo Motor Brand:	Other
Guiderail Brand:	Other	Control System Brand:	Other
Weight (kg):	160 KG	Key Selling Points:	4IN1
Product Name:	ALAND 4IN1 Metal Laser Welding Machine 1000W 1500W 2000W 3000W	Function:	Laser Welding/Cutting/Derusting/Cleaning
Suitable Material:	SS, Steel, Galvanized Steel, Aluminum	Laser Power Source Brand:	RAYCUS
Power Supply:	1*220V, 50/60Hz	Welding Thickness:	0.5mm-2mm
Fitting Wire Diameter (mm):	0.8,1.0,1.2	Fiber Length:	5-10m
OEM:	As Request	Guarantee Period:	2years For Raycus Laser Power
Machinery Test Report:	Provided	Video Outgoing-inspection:	Provided
Marketing Type:	New Product 2020	Warranty Of Core Components:	1 Year
Applicable Industries:	Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Home Use, Retail, Construction Works , Advertising Company, Other	Core Components:	Laser Power Source

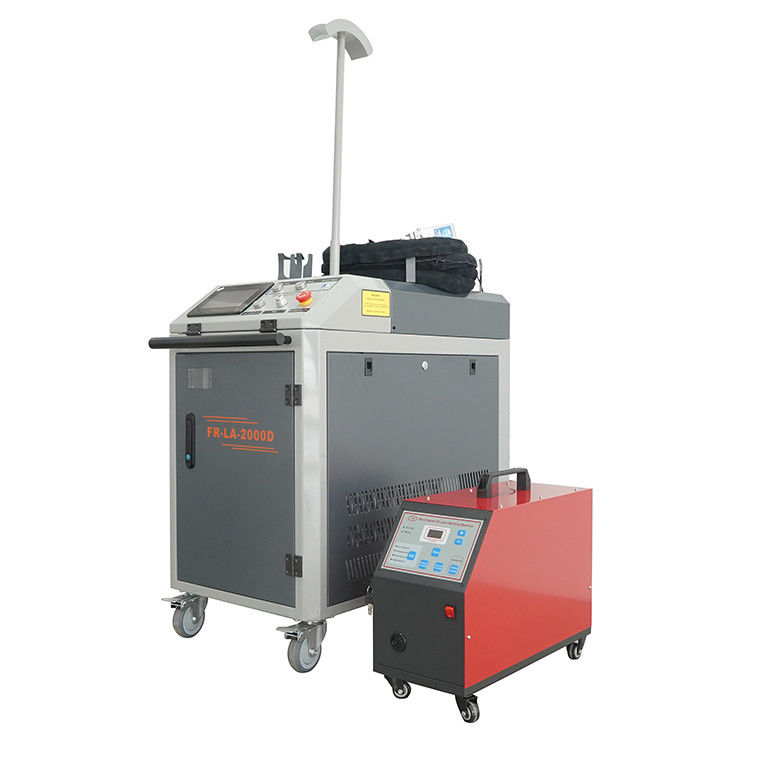

ALAND 4IN1 Metal Laser Welding Machine 1000W 1500W 2000W 3000W For Metal Stainless Steel Aluminum

↓↓↓ ↓↓↓

Click Here To Get A Free Quote！✉

Product attribute

Model	LA-1000	LA-1500			LA-2000			LA-3000
Laser Power	1000W	1500W			2000W			3000W
Laser model	continue or modulation
Laser wave length	1080nm
Laser quality	M2<1.2
output power stability	2%
Machine rate input power	6KW	8KW			9KW			13KW
Power supply	1*220V, 50/60Hz					1220V or 3380V, 50/60Hz	3*380V, 50/60Hz
Cooling system	input/output temperature controlled unit cooler
Fiber length	5-10m
Environment temperature range	15-35ºC
welding seam	<=2mm	<=3mm	<=4mm					<=5mm
Welding materials	steel/stainless steel			steel/stainless steel/aluminum
Welding thickness(depth of fusion )	0.5-2mm	0.5-3mm	0.5-3.5mm					0.5-4mm
Welding speed	0-120mm/s	0-120mm/s	0-120mm/s					0-120mm/s
fitting wire diameter (mm)	0.8，1.0,1.2	0.8.1.0,1.2,1.6	0.8,1.0,1.2,1.6					0.8,1.0,1.2,1.6
Machine dimension(LWH)	9006001060
Machine weight	160kg			170kg

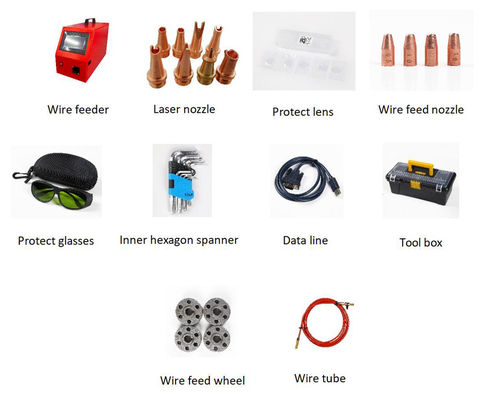

Accessories:

* Main Machine
* Fiber Laser torch with fiber cable
* Automatic Wire Feeder with cable
* Laser Torch Nozzles different size
* Feeding roller (1.2V/1.6V)
* Safety Goggle
* Data line & Liner
* Tool Box

Use effect

Main Features:

* High quality semiconductor laser and stable cooling system
* The torch with a special nozzle suitable for welding at different angles and positions on the workpiece
* Easy operation and get high welding speed and high quality
The efficiency can be up2-10 times than TIG welding and economize on manpower.
* General staff can use it and no need special training.
* Special design welding stirrer can get best laser spot and wide welding width, high quality welding seam.
* You can fit wire by a separated wire feeder
* Light hand torch with 5-10m original Fiber
* Integrated design
* Long-life Accessories and save energy, lower use cost.
* Special safety protection function for welding worker.
* Main parts with high quality and long life.

Product Packaging

WHY CHOOSE US

THE MOST IMPORTANT THINGIS THAT OUR PRODUCTS ARE GUARANTEED

FAQ.

Q1. Why Choose us?- We have nearly 10 years experience in welding industry and export to all over the world. - We have experienced R&D team. We can
adjust the parameter and panels design as per your request.
- Most of key parts are adopted top brand to ensure the quality. Such as the IGBT of Infineon (Simens). - Each machine will be
inspected before shipping. - One year warranty, life-long technical support and design service.
Q2. Could you get a customized sample?
Yes, we can adjust some configuration and parameters as your request.It also includes OEM service.
Q3. How is your quality control?
We use the world-class quality inspection to make every machine strong, powerful and reliable. We inspect with the world class
quality testing to make every single machine strong, powerful and reliable.
Inpection is full range, covered from welding power source to wire feeders, welding torches and up to welding consumables and work
safety. Whether you want to weld with 2T/4T, GAS/NO GAS, our components, which have been perfectly tuned to your requirements,
acting as excellent quality and the best possible welding results.
Q4. What voltage could you provide?110V/220v, 220/380V, 230V etc.
We can make it as per your country voltage.Q5. Can you send me the video to show how the machine works?
At present, some machines have video. We will try to make video of featured machine in future.
Q6. Do you have engineer who can guide me to install system?
Yes, we have a professional team. They can teach you how to work with it.
Q7. How long is the lead time for welding machine?
If no stockes, usually it takes 30-35 days after confirmation of order.
