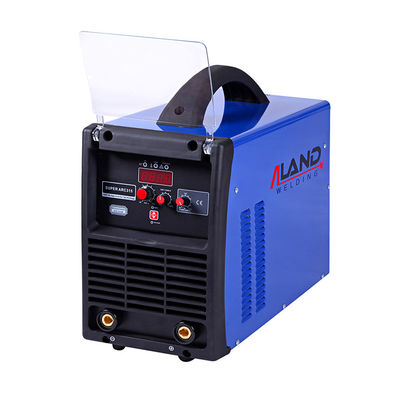

Name: 3*380V Manual Metal Arc Welders for Welding Mma Welders DC MMA Welding Machine
Brand: Beijing Aland Welding Co., Ltd.
Availability: InStock

Home Products SMAW (MMA) Welding Machine

3*380V Manual Metal Arc Welders for Welding Mma Welders DC MMA Welding Machine

Product Details:

Place of Origin:	Beijing, China
Brand Name:	ALAND

Contact Now

Detailed Product Description

Rated Input Voltage:	380V	Rated Duty Cycle @40°C:	60%
Max. Load Power Capacity:	16.6KVA	Rated Output Voltage:	380V
Welding Current/voltage Range:	315A	Condition:	New
Pulse Frequency:	60/50HZ	Motor Type:	DC MOTOR
Dimensions:	560240460mm	Usage:	Stick Welders
Weight (kg):	22	Warranty:	1 Year
Feature:	INVERTER	Input Power Cable M:	1.5m
Electrode Diameter Mm:	4.0mm, 4.8mm, 5.0mm	Model:	SUPERARC315
Power Supply Voltage:	3*380V,50/60HZ	Rate Input Capacity (KVA):	16.6
Rate Input Current:	24	No Load Voltage:	80
Output Current Range:	20-315A	Duty Cycle:	60%
Weight:	22KG	LWH(mm):	560240460

1. Introduction to welding machine

The SUPERARC315 is an IGBT Inverter welding machine that supports DC MMA and Pulse ACDC TIG welding, with adjustable arc start current, welding current, and arc force. Powered by a 32-bit MCU, it offers precise control, foot pedal and manual adjustments, and features an analog operation panel. It includes an anti-stick function and digital display for real-time amperage and voltage.With 3*400V input and a maximum output of 315A, it’s perfect for high-power industrial welding.

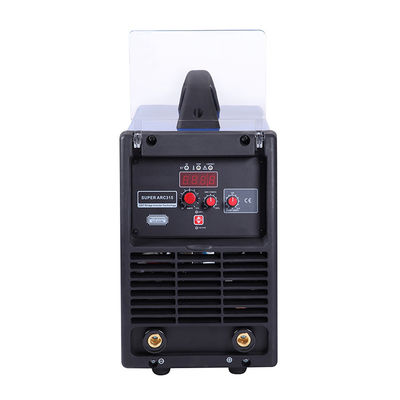

2.Panel display

3.Attribute table

Model	SUPERARC250	SUPERARC315	SUPERARC400
Power Supply Voltage	3*380V,50/60Hz	3*380V,50/60Hz	3*380V,50/60Hz
Rate Input Capacity (KVA)	9	16.6	23
Rate Input Current	13	24	33
No Load Voltage	80	80	80
Output current Range	20-250A	20-315A	20-400A
Duty Cycle	60%	60%	35%
Weight	15KG	22KG	25KG
LWH(mm)	560240460	560240460	560240460

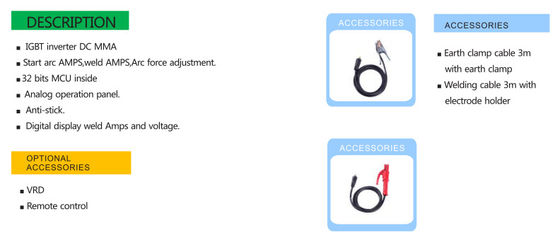

4. Analysis of product buying points

*IGBT inverter DC MMA

*Start arc AMPS,weld AMPS,Arc force adjustment.

*32 bits MCU inside

*Analog operation panel.

*Anti-stick.

*Digital display weld Amps and voltage.

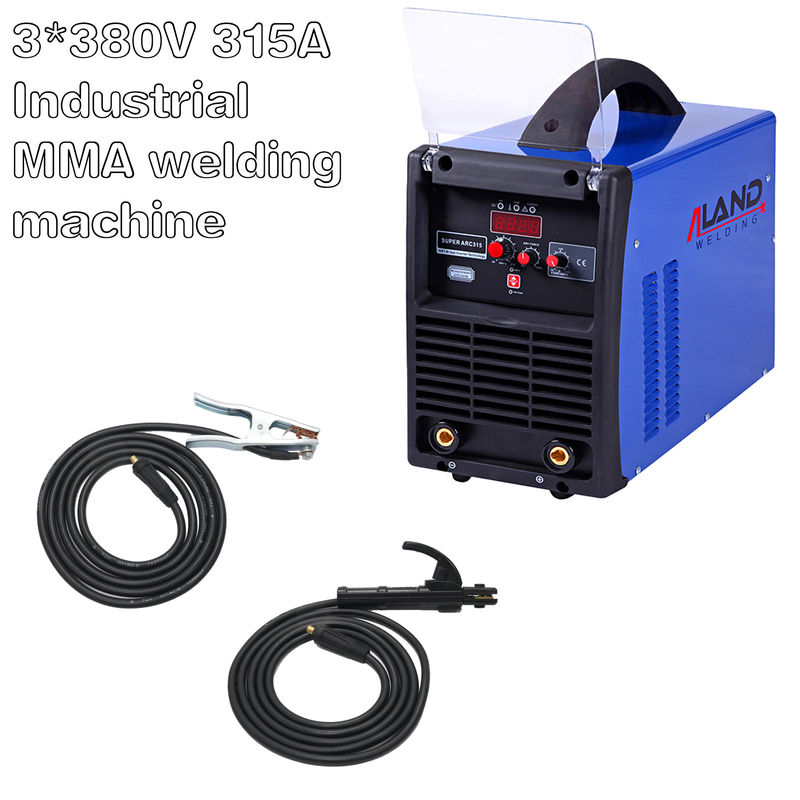

5. Product configuration

Serial Number	Name	Specification	Quantity
1	Electrode Holder	3m	1
2	Earth Clamp	3m	1
