Name: 230V DC Mma Welders Manual Metal Arc Welders Stick Welders
Brand: Beijing Aland Welding Co., Ltd.
Availability: InStock

Home Products SMAW (MMA) Welding Machine

230V DC Mma Welders Manual Metal Arc Welders Stick Welders

Product Details:

Place of Origin:	Beijing, China
Brand Name:	ALAND

Contact Now

Detailed Product Description

Rated Input Voltage:	230V	Rated Duty Cycle @40°C:	35%
Max. Load Power Capacity:	4.8KVA	Rated Output Voltage:	230 V
Rated Output Current:	160A	Welding Current/voltage Range:	15-160A
Condition:	New	Pulse Frequency:	50/60HZ
Motor Type:	DC MOTOR	Dimensions:	210120265MM
Usage:	MMA Welding	Weight (kg):	4.5 KG
Warranty:	1 Year	Feature:	INVERTER
Key Selling Points:	Digital	Applicable Industries:	Other, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Home Use, Retail
Machinery Test Report:	Not Available	Video Outgoing-inspection:	Not Available

1. Introduction to welding machine

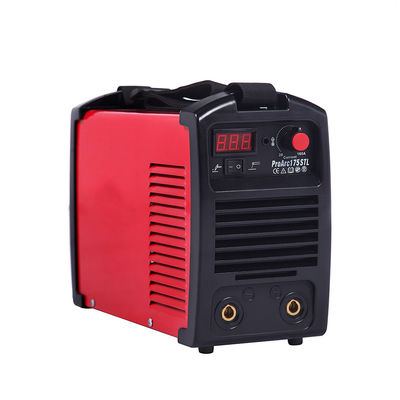

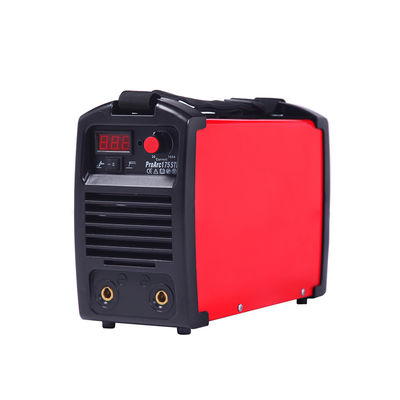

ProArc175STL is a compact and efficient welding machine featuring IGBT high-frequency inverter technology. It operates at 230V with a maximum output of 160A. Designed with a single PCB style, it supports DC MMA and Lift TIG welding, offering features like hot arc start, arc force adjustment, anti-stick functionality, and a digital display for precise control and ease of use.

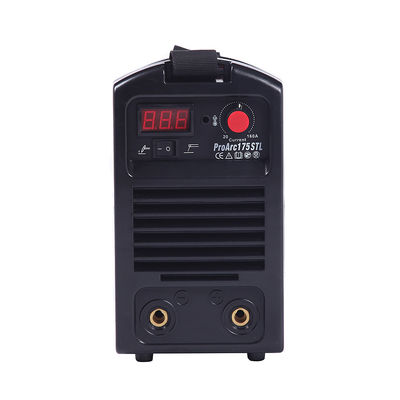

2.Panel display

3.Attribute table

Model	ProArc135STL	ProArc175STL	ProArc205STL	ProArc250STL
Power Supply Voltage	1*230V,50/60HZ	1*230V,50/60HZ	1*230V,50/60HZ	1*230V,50/60HZ
Rate Input Capacity (KVA)	4.5	4.8	6	9
Rate Input Current(A)	20	21	26	39
No Load Voltage	83	83	83	85
Output current Range	15-135A	15-160A	20-200A	20-250A
Duty Cycle	35%	35%	35%	35%
Weight	4.2kg	4.5kg	5.5kg	7.5kg
LWH(mm)	210120265	210120265	290165265	290165265

4. Analysis of product buying points

*IGBT high frequancy inverter DC MMA

*Single PCB style design.

*Hot arc start and arc force and Anti-stick

*Lift Tig welding

*Digital display.

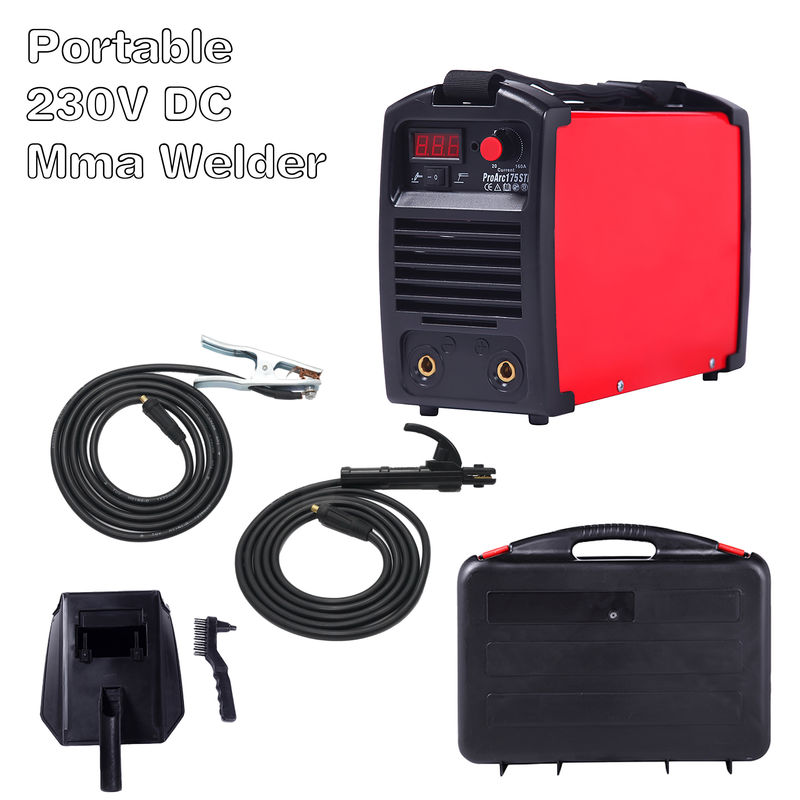

5. Product configuration

ACCESSORIES

Earth clamp cable lm with200A earth clamp

Welding cable 1.5m with200A electrode holder

Serial Number	Name	Specification	Quantity
1	Earth Clamp	1m	1
2	Electrode Holder	1.5m	1

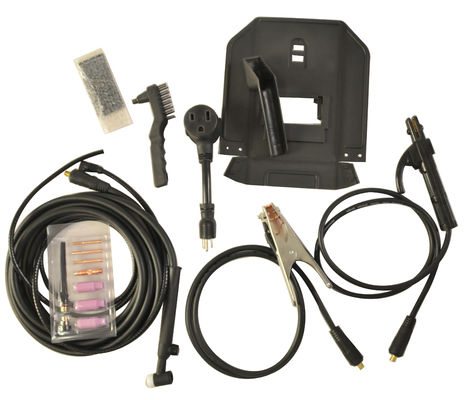

OPTIONAL ACCESSORIES

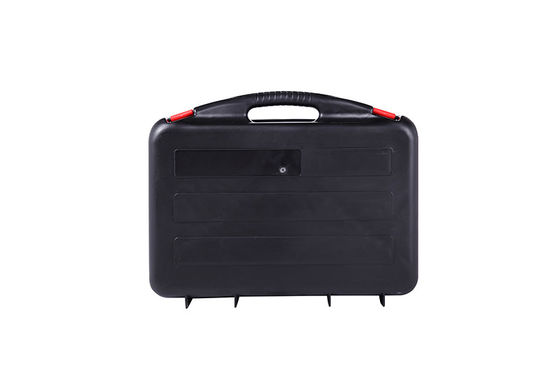

BMC(plastic box)

Dual voltage110/220V

E6010 socket

Weld helmet

Serial Number	Name	Specification	Quantity
1	BMC(plastic box)		1
2	Weld helmet		1
