Product Details:

Place of Origin:	Beijing, China
Brand Name:	ALAND

Contact Now

Detailed Product Description

Rated Input Voltage:	220V	Rated Duty Cycle @40°C:	35%
Max. Load Power Capacity:	4.8KVA	Rated Output Voltage:	230 V
Welding Current/voltage Range:	15-160A	Condition:	New
Pulse Frequency:	50/60HZ	Motor Type:	DC MOTOR
Dimensions:	210120265MM	Usage:	MMA Welding
Weight (kg):	4.5	Warranty:	1 Year
Feature:	INVERTER	Input Power Cable M:	1.5m
Electrode Diameter Mm:	4.0mm, 4.8mm, 5.0mm	Model:	PoArc175ST
Power Supply Voltage:	1*230V,50/60Hz	Rate Input Capacity (KVA):	4.8
Rate Input Current(A):	21	No Load Voltage:	83
Output Current Range:	15-160A	Duty Cycle:	35%
Weight:	4.5	LWH(mm):	210120265

1. Introduction to welding machine

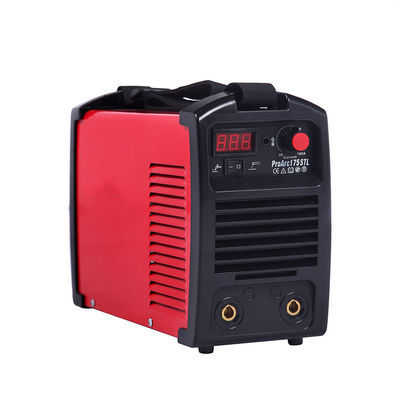

ProArc175STL is a compact and efficient welding machine featuring IGBT high-frequency inverter technology. It operates at 230V with a maximum output of 160A. Designed with a single PCB style, it supports DC MMA and Lift TIG welding, offering features like hot arc start, arc force adjustment, anti-stick functionality, and a digital display for precise control and ease of use.

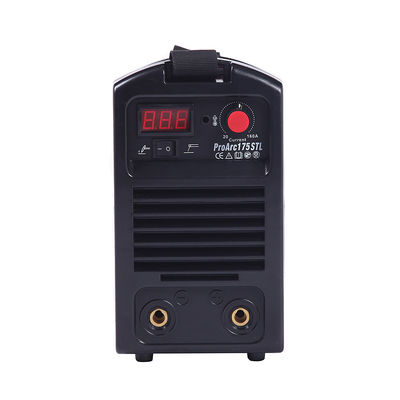

2.Panel display

3.Attribute table

Model	ProArc135STL	ProArc175STL	ProArc205STL	ProArc250STL
Power Supply Voltage	1*220V,50/60HZ	1*220V,50/60HZ	1*220V,50/60HZ	1*220V,50/60HZ
Rate Input Capacity (KVA)	4.5	4.8	6	9
Rate Input Current(A)	20	21	26	39
No Load Voltage	83	83	83	85
Output current Range	15-135A	15-160A	20-200A	20-250A
Duty Cycle	35%	35%	35%	35%
Weight	4.2kg	4.5kg	5.5kg	7.5kg
LWH(mm)	210120265	210120265	290165265	290165265

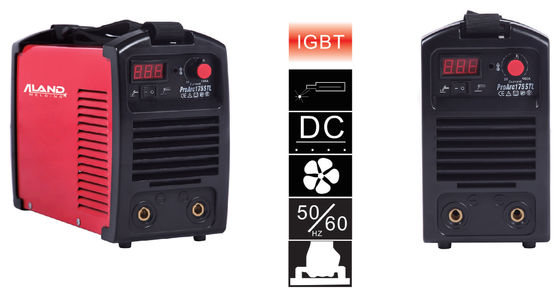

4. Analysis of product buying points

*IGBT high frequancy inverter DC MMA

*Single PCB style design.

*Hot arc start and arc force and Anti-stick

*Lift Tig welding

*Digital display.

5. Product configuration

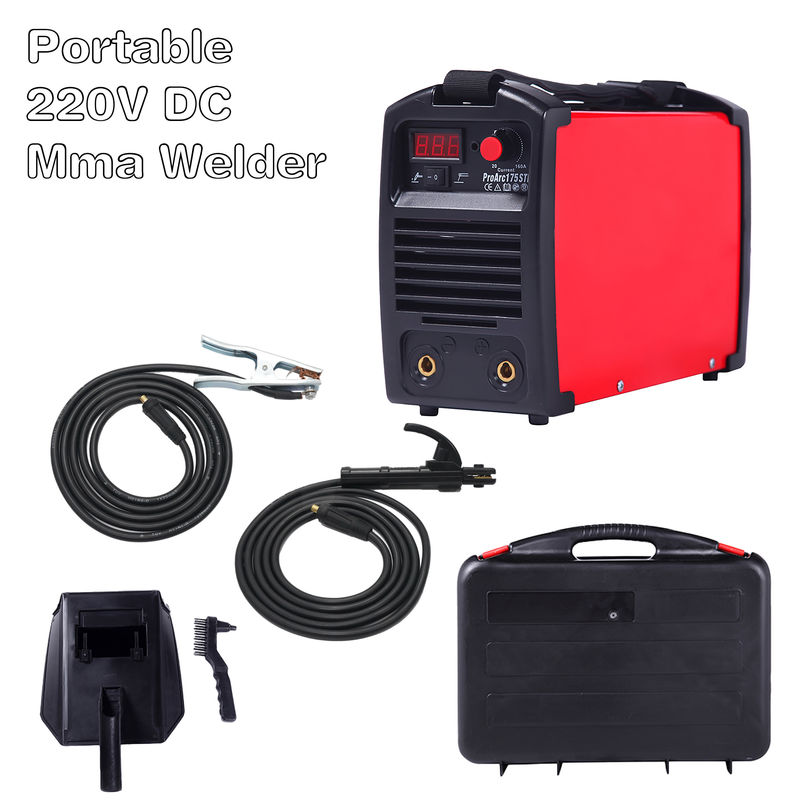

ACCESSORIES

Earth clamp cable lm with200A earth clamp

Welding cable 1.5m with200A electrode holder

Serial Number	Name	Specification	Quantity
1	Earth Clamp	1m	1
2	Electrode Holder	1.5m	1

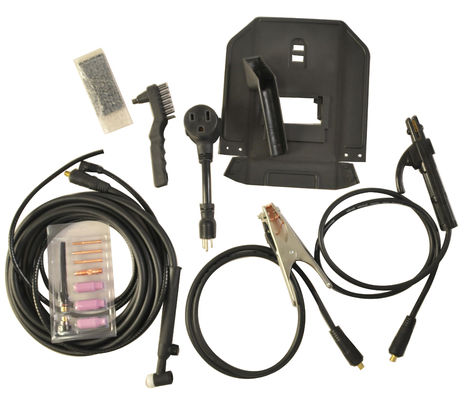

OPTIONAL ACCESSORIES

BMC(plastic box)

Dual voltage110/220V

E6010 socket

Weld helmet

Serial Number	Name	Specification	Quantity
1	BMC(plastic box)		1
2	Weld helmet		1
