Name: Quality 9 Litres of Coolant Water Cooling Machine With Temperature Sensor
Brand: Beijing Aland Welding Co., Ltd.
Availability: InStock

Home Products Welding Water Cooler

Quality 9 Litres of Coolant Water Cooling Machine With Temperature Sensor

Product Details:

Place of Origin:	Beijing, China
Brand Name:	ALAND
Certification:	CE

Contact Now

Detailed Product Description

Warranty:	0	Customized Support:	OEM, ODM
Package:	By Standard Cartons	Brand:	ALAND
Water Capacity:	9L	Max. Pressure:	0.3MPa/50Hz
Cooling Power:	1.5kw(1L/min)	Voltage:	230V/50Hz Or As You Required
After-sales Service Provided:	Online Support	Applicable Industries:	Home Use
Power:	370W

Product Description

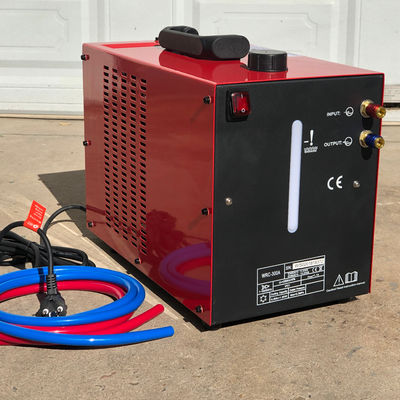

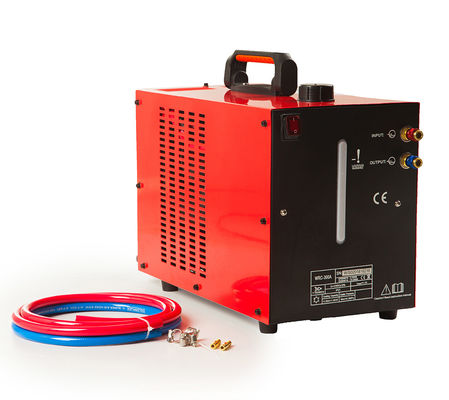

9L Economical Welding Water Cooler for TIG Welder and Plasma Cutting Machine

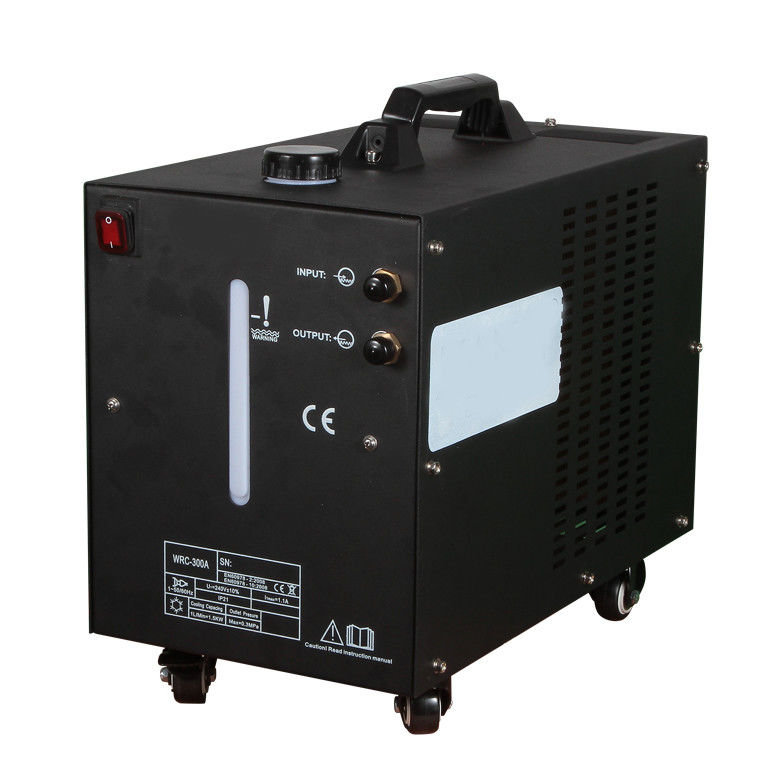

Model: WRC-300A(9L)

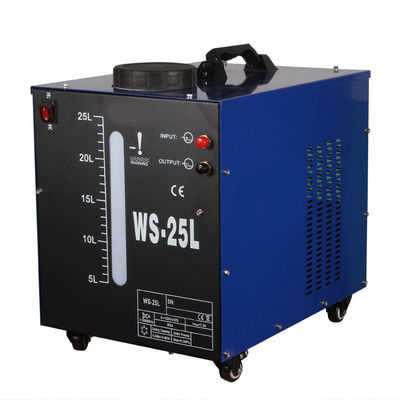

Model	WRC-300A(9L)	WS-12L	WS-200A(16L)	WS-25L
Voltage	1x230V(380V), 50/60Hz	1x230V(380V), 50/60Hz	1x230V(380V), 50/60Hz	1x230V(380V), 50/60Hz
Phase	Single Phase	Single Phase	Single Phase	Single Phase
Cooling power	1.5KW	1.7W	2.6KW	2.8KW
Pump power	370W	370W	370W	370W
Output flow	7-9L/min	7-9L/min	7-9L/min	7-9L/min
Max. pressure/Head	0.30MPa/(35m)	0.30MPa/(35m)	0.30MPa/(35m)	0.30MPa/(35m)
Water capacity	9L	12L	16L	25L
Operation temperature	-20ºC~60ºC	-20ºC~60ºC	-20ºC~60ºC	-20ºC~60ºC
Gross Weight	17.5kg	18kg	22.3kg	22kg
Packing Size(LWH)	*550340420mm*	590400410 (mm)	545355390mm	605460500mm

● Light weight, compact design and easy to use.
● NSK bearing is applied on pump.
● The material of shaft seal is Polythene, and its service life is over 10 years.
● The shaft is made of stainless steel.
● The material of refrigerator is copper.
● The impeller is made of copper alloy.
● High performance on water anti-leakage;
● Good performance of Prevent scale in vortex water pump;
● Water level is visible outside through window.
● The water filling port is inclined forward to facilitate water injection;
● The cooling capacity increased by 30% compared to the Equivalent product.

Detailed Images

Packing & Delivery

FAQ.

Q1. Why Choose us?- We have nearly 10 years experience in welding industry and export to all over the world. - We have experienced R&D team. We can
adjust the parameter and panels design as per your request.
- Most of key parts are adopted top brand to ensure the quality. Such as the IGBT of Infineon (Simens). - Each machine will be
inspected before shipping. - One year warranty, life-long technical support and design service.
Q2. Could you get a customized sample?
Yes, we can adjust some configuration and parameters as your request.It also includes OEM service.
Q3. How is your quality control?
We use the world-class quality inspection to make every machine strong, powerful and reliable. We inspect with the world class
quality testing to make every single machine strong, powerful and reliable.
Inpection is full range, covered from welding power source to wire feeders, welding torches and up to welding consumables and work
safety. Whether you want to weld with 2T/4T, GAS/NO GAS, our components, which have been perfectly tuned to your requirements,
acting as excellent quality and the best possible welding results.
Q4. What voltage could you provide?110V/220v, 220/380V, 230V etc.
We can make it as per your country voltage.Q5. Can you send me the video to show how the machine works?
At present, some machines have video. We will try to make video of featured machine in future.
Q6. Do you have engineer who can guide me to install system?
Yes, we have a professional team. They can teach you how to work with it.
Q7. How long is the lead time for welding machine?
If no stockes, usually it takes 30-35 days after confirmation of order.
